รบกวนติดต่อสอบถามก่อนสั่งซื้อ
แบบ: มาตรฐาน
ยังไม่มีรายละเอียดสินค้าเพิ่มเติม
| Interface | 1× 2.5G Ethernet Port |
|---|---|
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included) |
| Power Consumption | • 19.5 W (For PoE); |
| • 16.8 W (For DC) | |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Antenna Type | • 2.4 GHz: 2× 4.0 dBi |
| • 5 GHz | 2× 5.0 dBi |

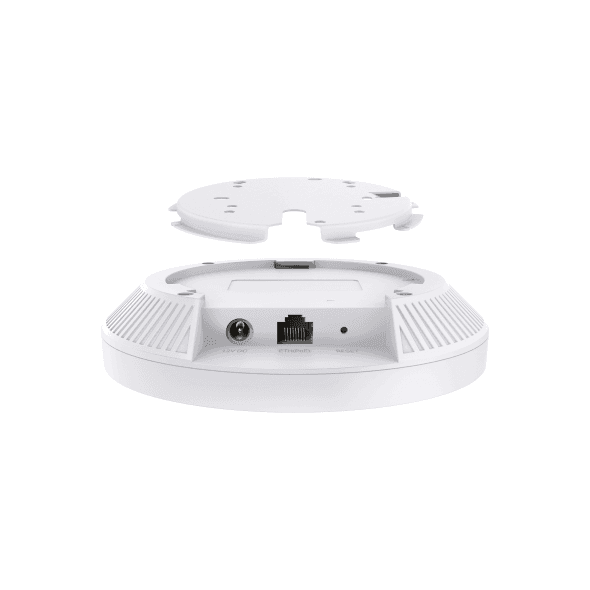

| Mounting | Ceiling / Wall Mounting (Kits Included) |
| Coverage | 140㎡(1500 ft²) *** |
| Wireless Client Capacity | 250+ ** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) |
| Wireless Functions | • 4K-QAM ‡ |
| • Seamless Roaming | |
| • MU-MIMO ‡ | |
| • EHT240 ‡ | |
| • Mesh △ | |
| • OFDMA ‡ | |
| • Load Balance | |
| • Band Steering | |
| • Beamforming | |
| • Airtime Fairness | |
| • Multiple SSIDS | 16(8 on each band) |
| • Wireless Schedule | |
| • Reboot Schedule | |
| • QoS(WMM) | |
| • Rate Limit | |
| • Static IP/Dynamic IP | |
| • RADIUS Accounting | |
| • MAC Authentication | |
| Wireless Security | • Captive Portal Authentication △ |
| • Access Control | |
| • Maximum number of MAC Filter | 4,000 |
| • Wireless Isolation Between Clients | |
| • VLAN | |
| • Rogue AP Detection | |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | < 25 dBm (2.4GHz) |
| < 25 dBm (5GHz, band 1&band 4) | |
| < 24 dBm (5GHz, band 2&band 3) | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller | |
| • Omada Software Controller | |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| Certification | CE, FCC, RoHS, IC |
| Package Contents | • EAP723 |
| • Installation Guide | |
| • Ceiling/Wall Mounting Kit | |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); |
| • Storage Temperature | -40 °C–70 °C (-40 °F–158 °F); |
| • Operating Humidity | 10%–90% non-condensing; |
| • Storage Humidity | 5%–90% non-condensing; |
