SKU EAP625-OUTHD
จัดส่งภายใน 3-5 วันทำการรบกวนติดต่อสอบถามก่อนสั่งซื้อ
แบบ: มาตรฐาน

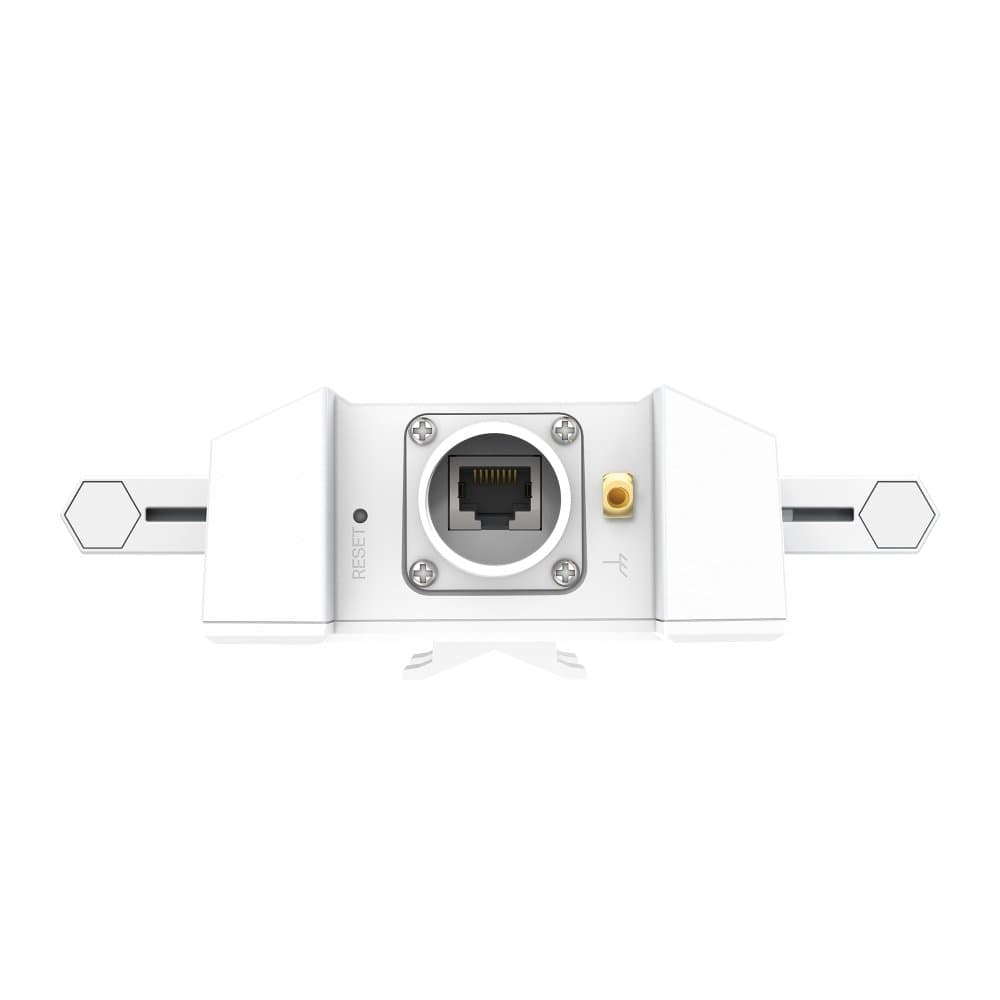

| Interface | 1x Gigabit Ethernet Port |
|---|---|
| Button | Reset |
| Power Supply | • 802.3at PoE |
| • 48V Passive PoENote | PoE adapter is not included. |
| Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE) |
| • US | 14.7W (802.3at PoE or Passive PoE) |
| Dimensions ( W x D x H ) | 7.2 × 2.2 × 11.1 in (182.2 × 57 × 281 mm) *5 |
| Antenna Type | 2× External Dual-Band Omni Antennas |
| • 2.4 GHz | 3.0 dBi; |
| • 5 GHz | 5.0 dBi |
| Bluetooth | V5.2 |
| Weatherproof Enclosure | IP67 |
| Mounting | Pole/Wall Mounting (Kits included) |
| Concurrent Clients | 1,020+ 3 |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 5 GHz, and 2.4 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps |
| • 2.4 GHz | Up to 574 Mbps |
| Wireless Functions | • Mesh *4 |
| • Seamless Roaming(802.11k/v/r) *4 | |
| • Automatic Channel Assignment | |
| • Load Balance | |
| • Band Steering | |
| • Beamforming | |
| • Airtime Fairness | |
| • Multiple SSIDs | 16 (8 for each band) |
| • MU-MIMO (2×2 MU-MIMO DL) | |
| • Wireless Statistics | |
| • Wireless Schedule | |
| • Reboot Schedule | |
| • RADIUS Accounting | |
| • MAC Authentication | |
| • Static IP/Dynamic IP | |
| Wireless Security | • VLAN |
| • Access Control | |
| • Rogue AP Detection | |
| • Captive Portal Authentication *4 | |
| • Maximum number of MAC Filter | 4,000 |
| • Wireless Isolation between Clients | |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| • 802.1X Support | |
| Transmission Power | • CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP); |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| • Omada Cloud-Based Controller | |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| Certification | CE, RoHS |
| Package Contents | • EAP625-Outdoor HD |
| • 2× Detachable Antennas | |
| • Installation Guide | |
| • Mounting Kit | |
| • Waterproof Kit | |
| Environment | • Operating Temperature: -30 °C–70 °C (-22 °F–158 °F); |
| • Storage Temperature | -40 °C–70 °C (-40 °F–158 °F); |
| • Operating Humidity | 10%–90% non-condensing; |
| • Storage Humidity | 5%–90% non-condensing |
| รหัสสินค้า (SKU) | EAP625-OUTHD |
| หมวดหมู่ | แอคเซสพอยต์ & Wi-Fi |
| ประเภทการจัดส่ง | จัดส่งสินค้าจริง |
