SKU EAP615-WALL
พร้อมส่งจัดส่งภายใน 3-5 วันทำการก่อน VAT
รวม VAT 7% ฿3,103.00
แบบ: มาตรฐาน

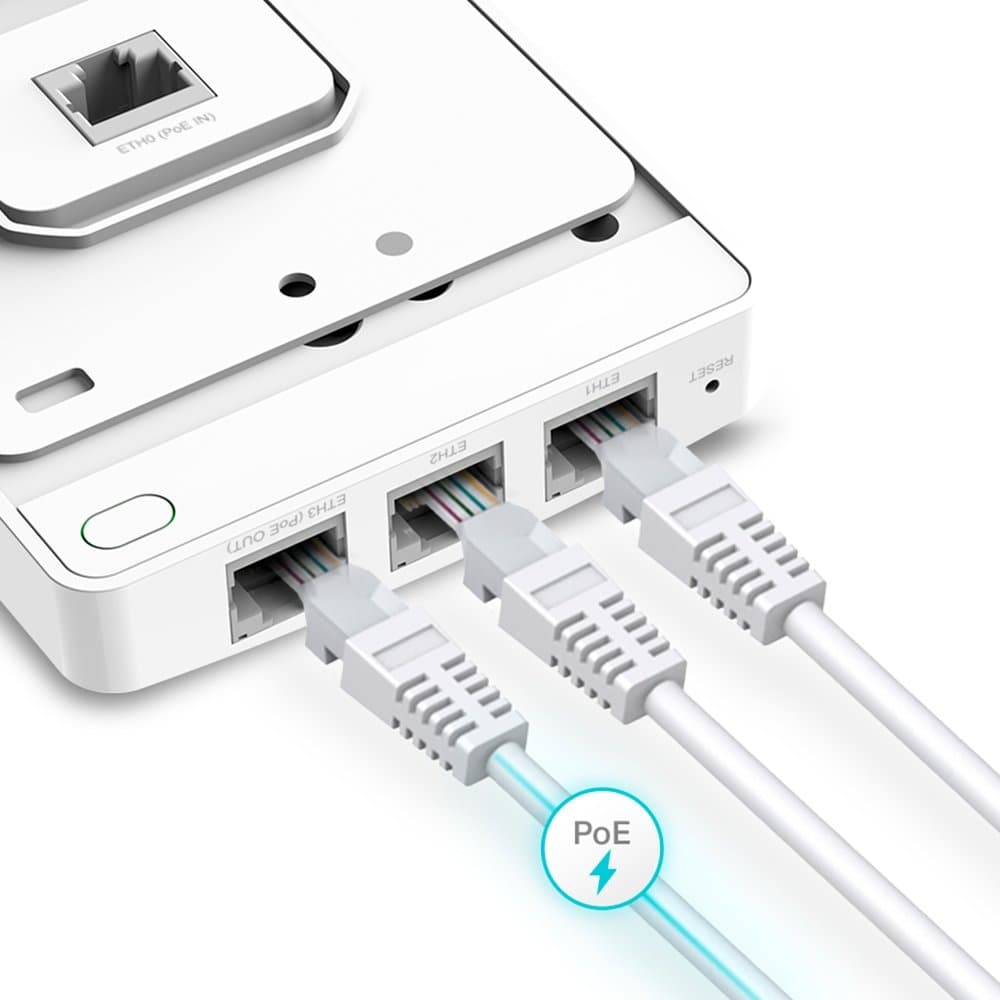

| Interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port |
|---|---|
| • Downlink | 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.) |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE |
| Power Consumption | EU: 10W (802.3at PoE, PoE Out off) |
| US | 11.5W (802.3at PoE, PoE Out off) |
| Dimensions ( W x D x H ) | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Dimensions | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Antenna | 2 Dual-Band Antennas |
| • 2.4 GHz | 2× 3 dBi |
| • 5 GHz | 2× 4 dBi |
| Mounting | Wall Plate Mounting |
| Coverage | 50㎡(600 ft²) △ |
| Wireless Client Capacity | 100+ △ |
| Concurrent Clients | 120+ △ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps |
| • 2.4 GHz | Up to 574 Mbps |
| Wireless Security | • Captive Portal Authentication † |
| • Access Control | |
| • Wireless Mac Address Filtering | |
| • Wireless Isolation Between Clients | |
| • VLAN | |
| • Rogue AP Detection | |
| • 802.1X Support | |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | • CE: |
| < 20 dBm (2.4 GHz, EIRP) | |
| < 21 dBm (2.4 GHz) | |
| < 21 dBm (5 GHz) | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Certification | CE, FCC, RoHS |
| Package Contents | • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall |
| • Installation Guide | |
| • Mounting Kits | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) |
| • Storage Temperature | -40–70 ℃ (-40–158 ℉) |
| • Operating Humidity | 10–90% RH non-condensing |
| • Storage Humidity | 5–90% RH non-condensing |
| รหัสสินค้า (SKU) | EAP615-WALL |
| หมวดหมู่ | แอคเซสพอยต์ & Wi-Fi |
| ประเภทการจัดส่ง | จัดส่งสินค้าจริง |
