SKU EAP650-DESKTOP
จัดส่งภายใน 3-5 วันทำการรบกวนติดต่อสอบถามก่อนสั่งซื้อ
แบบ: มาตรฐาน

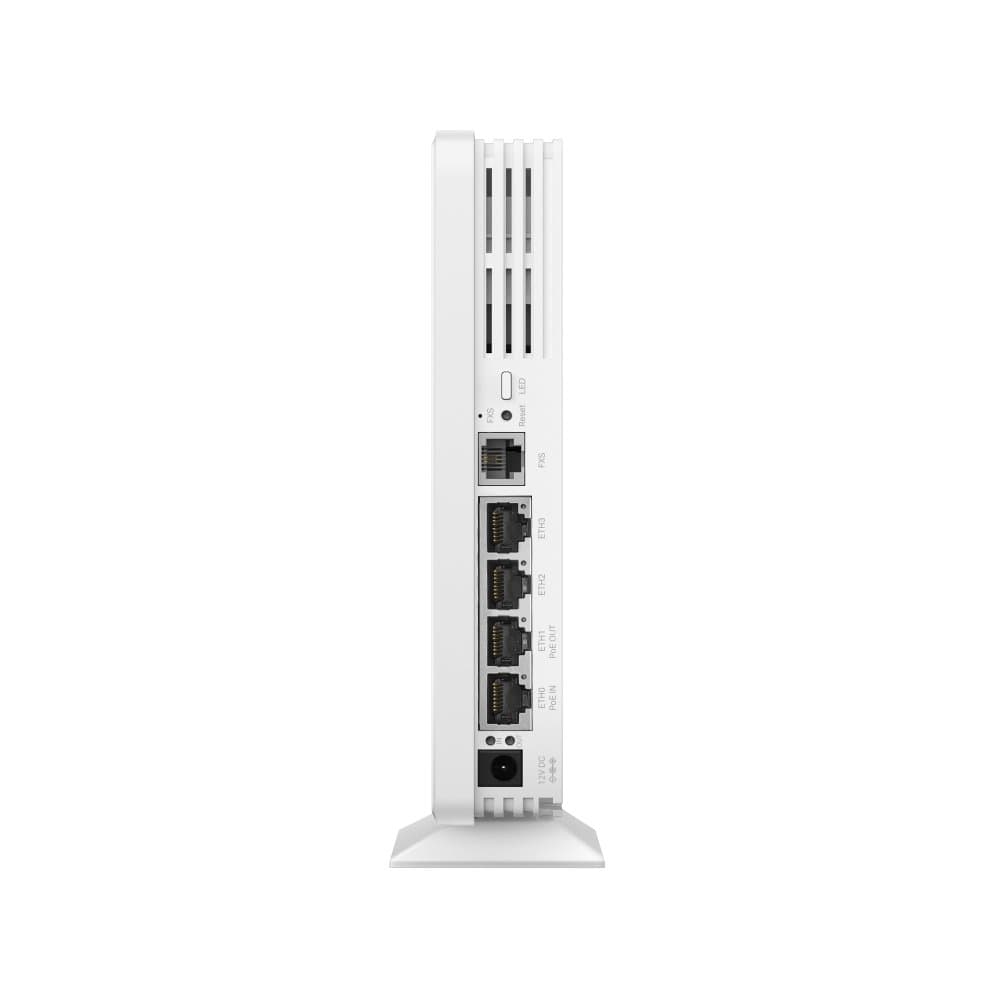

| Interface | 4× 1Gbps Ethernet Ports + 1× FXS Port |
|---|---|
| (One Ethernet port supports PoE Out | 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input) |
| Button | • Reset |
| • LED | |
| Power Supply | 802.3 af/at/bt PoE or 12V/1.5A DC |
| *PoE Out requires 802.3at/bt PoE power supply | |
| Power Consumption | 17.3W (PoE Out Off) |
| Weight | 452g (excluding mounting base) |
| Dimensions ( W x D x H ) | 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) |
| Antenna Type | Internal Omni |
| • 2.4 GHz | 2× 5 dBi |
| • 5 GHz | 3× 4.7 dBi |
| Range | 140㎡(1500 ft²)* |
| Mounting | Desktop / Wall mouting (Kits included) |
| Concurrent Clients | 250+ * |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: 2402 Mbps † |
| • 2.4 GHz | 574 Mbps |
| Wireless Security | • Captive Portal Authentication § |
| • Access Control | |
| • Wireless Mac Address Filtering | |
| • Wireless Isolation Between Clients | |
| • VLAN | |
| • Rogue AP Detection | |
| • 802.1X Support | |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | • CE: |
| <20 dBm(2.4 GHz, EIRP) | |
| <23 dBm(5 GHz, band1 & band2, EIRP) | |
| <26 dBm (2.4 GHz) | |
| <27 dBm (5 GHz) | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller |
| • Omada Software Controller | |
| • Omada Cloud-Based Controller | |
| Cloud Access | Yes. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes.Reauire the use of Omada Cloud-Based controller |
| Certification | CE, FCC, RoHS, IC |
| Package Contents | • EAP650-Desktop |
| • Desktop/Wall Mounting Kit | |
| • Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) |
| • Storage Temperature | -40–70 ℃ (-40–158 ℉) |
| • Operating Humidity | 10–90% RH non-condensing |
| • Storage Humidity | 5–90% RH non-condensing |
| รหัสสินค้า (SKU) | EAP650-DESKTOP |
| หมวดหมู่ | แอคเซสพอยต์ & Wi-Fi |
| ประเภทการจัดส่ง | จัดส่งสินค้าจริง |
