SKU EAP650-OUTDOOR
จัดส่งภายใน 3-5 วันทำการรบกวนติดต่อสอบถามก่อนสั่งซื้อ
แบบ: มาตรฐาน

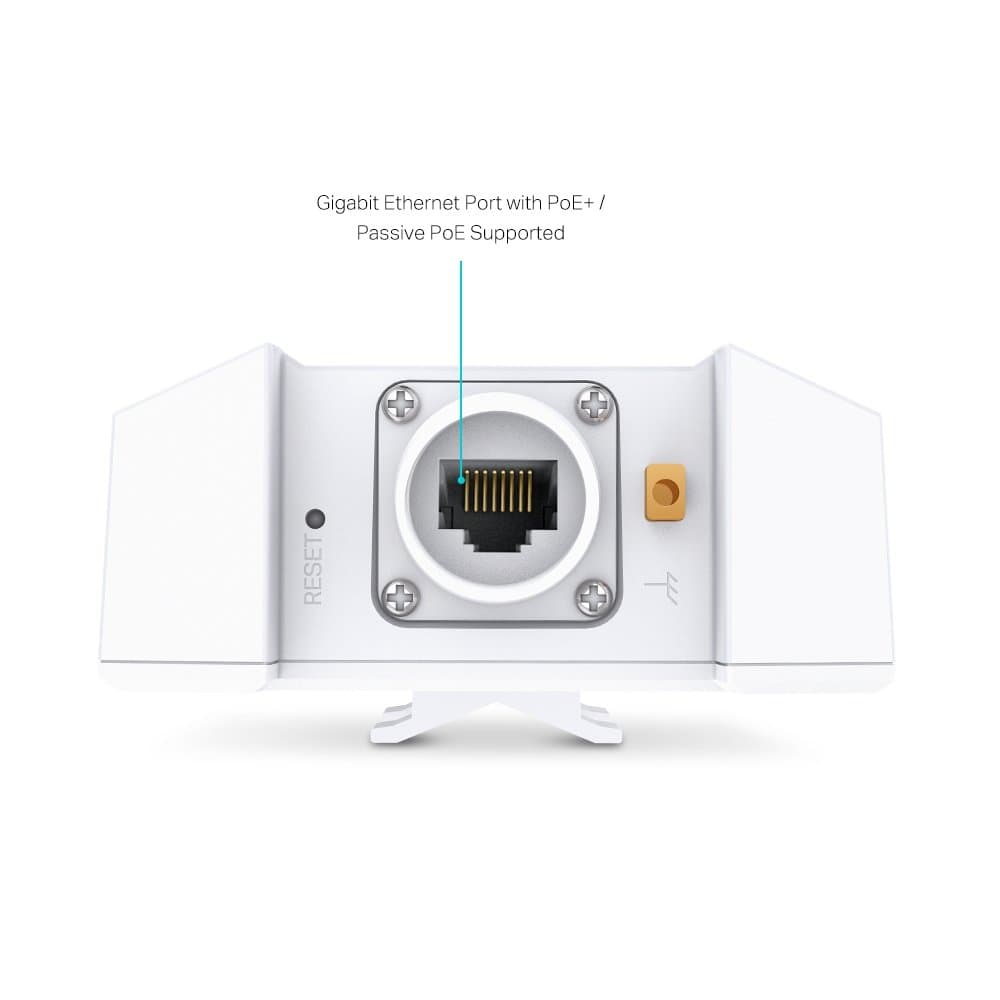

| Interface | 1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE) |
|---|---|
| Button | Reset |
| Power Supply | • 802.3at PoE |
| • 48V Passive PoE (PoE Adapter Included) | |
| Power Consumption | • EU: 12.5W (802.3at PoE or Passive PoE) |
| • US | 14.7W (802.3at PoE or Passive PoE) |
| Dimensions ( W x D x H ) | • 280.4×106.5×56.8 mm (without antenna & mounting kit) |
| Antenna | • 2.4 GHz: 2× 4 dBi |
| • 5 GHz | 2× 5 dBi |
| Weatherproof Enclosure | IP67 |

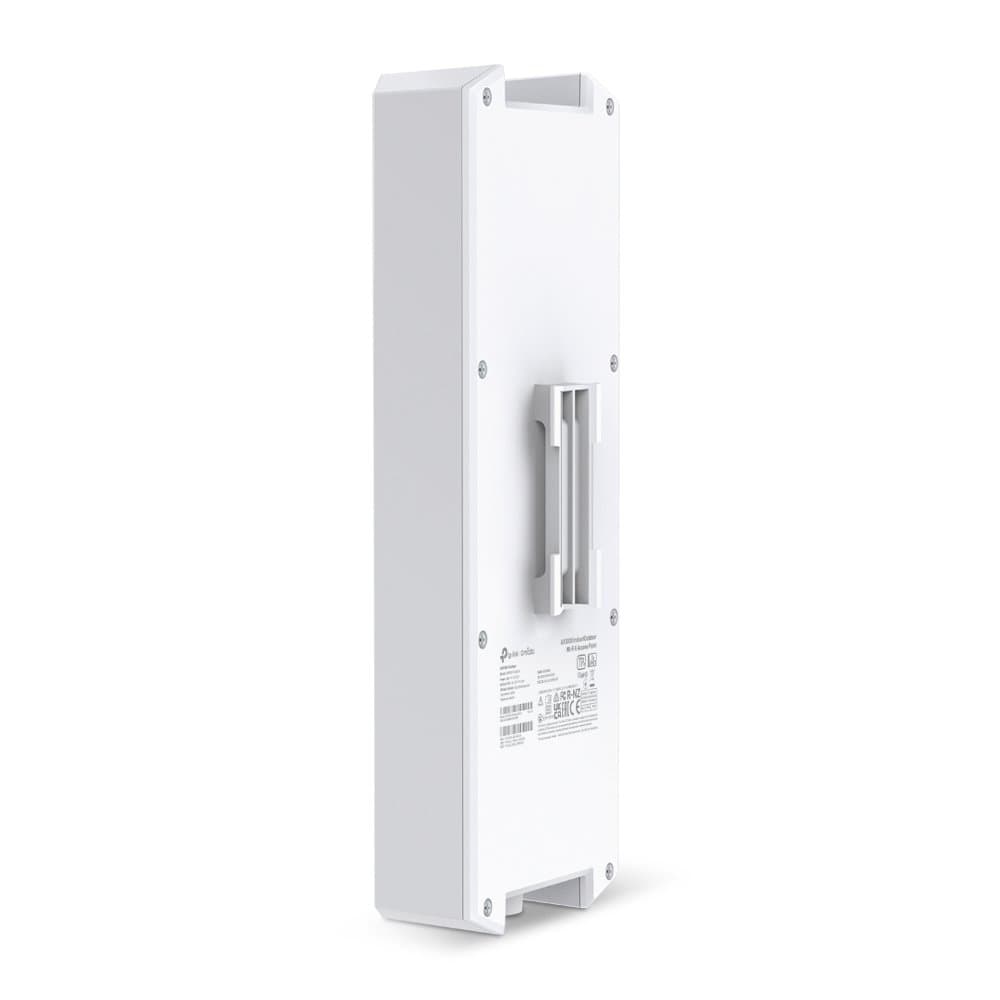

| Mounting | Pole/Wall Mounting (Kits included) |
| Wireless Client Capacity | 250+ 6 |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz, 5 GHz |
| Signal Rate | • 802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80) |
| • 802.11ac | 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to |
| 2 VHT20/40/80) | |
| • 802.11n | 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) |
| • 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| • 802.11b | 1, 2, 5.5, 11 Mbps |
| • 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Transmit Power | • CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP) |
| • FCC | <25 dBm (2.4 GHz), <25 dBm(5 GHz) |
| Wireless Security | • Captive Portal Authentication 3 |
| • Access Control | |
| • Wireless Mac Address Filtering | |
| • Wireless Isolation Between Clients | |
| • SSID to VLAN Mapping | |
| • Rogue AP Detection | |
| • 802.1X Support | |
| • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) | |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Cloud Access | Yes, through |
| • Omada Cloud-Based Controller | |
| • OC300 | |
| • OC200 | |
| • Omada Software Controller | |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Certification | CE, FCC, RoHS |
| Package Contents | • Access Point EAP650-Outdoor |
| • Passive PoE Adapter | |
| • Power Cord | |
| • Mounting Kits | |
| • Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: -30–70 ℃ (-22–158 ℉) |
| • Storage Temperature | -40–70 ℃ (-40–158 ℉) |
| • Operating Humidity | 10–90% RH non-condensing |
| • Storage Humidity | 5–90% RH non-condensing |
| รหัสสินค้า (SKU) | EAP650-OUTDOOR |
| หมวดหมู่ | แอคเซสพอยต์ & Wi-Fi |
| ประเภทการจัดส่ง | จัดส่งสินค้าจริง |
