SKU EAP783
จัดส่งภายใน 3-5 วันทำการรบกวนติดต่อสอบถามก่อนสั่งซื้อ
แบบ: มาตรฐาน
| Interface | 2× 10G Ethernet Port |
|---|---|
| Button | Reset |
| Power Supply | • 802.3bt PoE++ |
| • 12V DCNote：Power adapter is not included. | |
| Power Consumption | 39W |
| Dimensions ( W x D x H ) | 11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm) |
| Antenna Type | Internal Omni |
| • 2.4 GHz | 4× 4 dBi |
| • 5 GHz | 4× 5.5 dBi |
| • 6 GHz | 4× 5 dBi |
| Bluetooth | Yes |

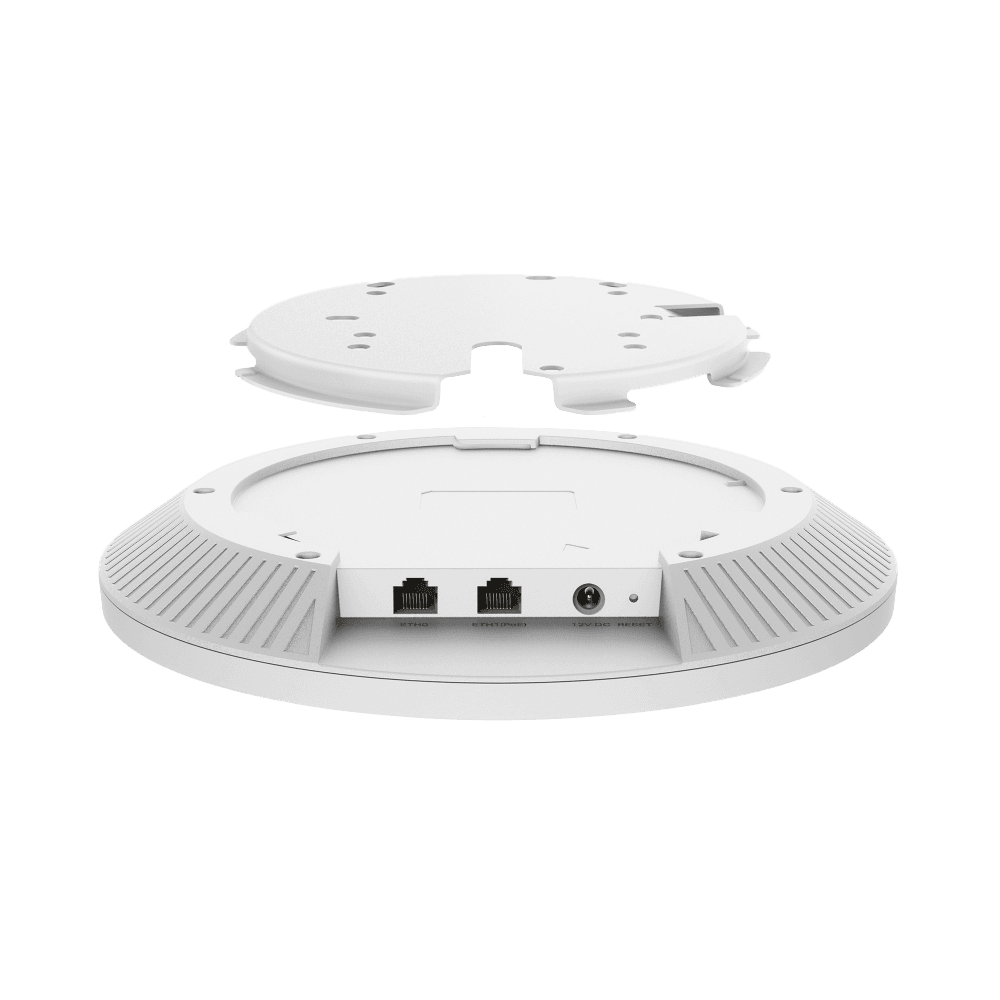

| Mounting | Ceiling / Wall Mounting (Kits Included) |
| Coverage | 200㎡ (2150 ft²) § |
| Concurrent Clients | 640 ** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | • 6 GHz: Up to 11520 Mbps |
| • 5 GHz | Up to 8640 Mbps |
| • 2.4 GHz | Up to 1376 Mbps |
| Wireless Functions | • MLO |
| • 4K-QAM | |
| • MU-MIMO | |
| • HE320 | |
| • Mesh | |
| • Automatic Channel Selection and Power Adjustment | |
| • BBS Coloring | |
| • OFDMA | |
| • Load Balance | |
| • Band Steering | |
| • Beamforming | |
| • Airtime Fairness | |
| • Multiple SSIDS | |
| • Wireless Schedule | |
| • Reboot Schedule | |
| Wireless Security | • PPSK |
| • Captive Portal Authentication | |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise,WPA3-Personal/Enterprise | |
| Transmission Power | CE: |
| <20 dBm(2.4 GHz, EIRP) | |
| <24 dBm (6 GHz) | |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) | |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| Weight | Net Weight:1384.6g |
| Certification | CE, FCC, RoHS, IC |
| Package Contents | • EAP783 |
| • Installation Guide | |
| • Ceiling/Wall Mounting Kits | |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); |
| • Storage Temperature | -40 °C–70 °C (-40 °F–158 °F); |
| • Operating Humidity | 10%–90% non-condensing; |
| • Storage Humidity | 5%–90% non-condensing |
| รหัสสินค้า (SKU) | EAP783 |
| หมวดหมู่ | แอคเซสพอยต์ & Wi-Fi |
| ประเภทการจัดส่ง | จัดส่งสินค้าจริง |
