SKU EAP215-BRIDGE
พร้อมส่งจัดส่งภายใน 3-5 วันทำการก่อน VAT
รวม VAT 7% ฿4,483.30
แบบ: มาตรฐาน

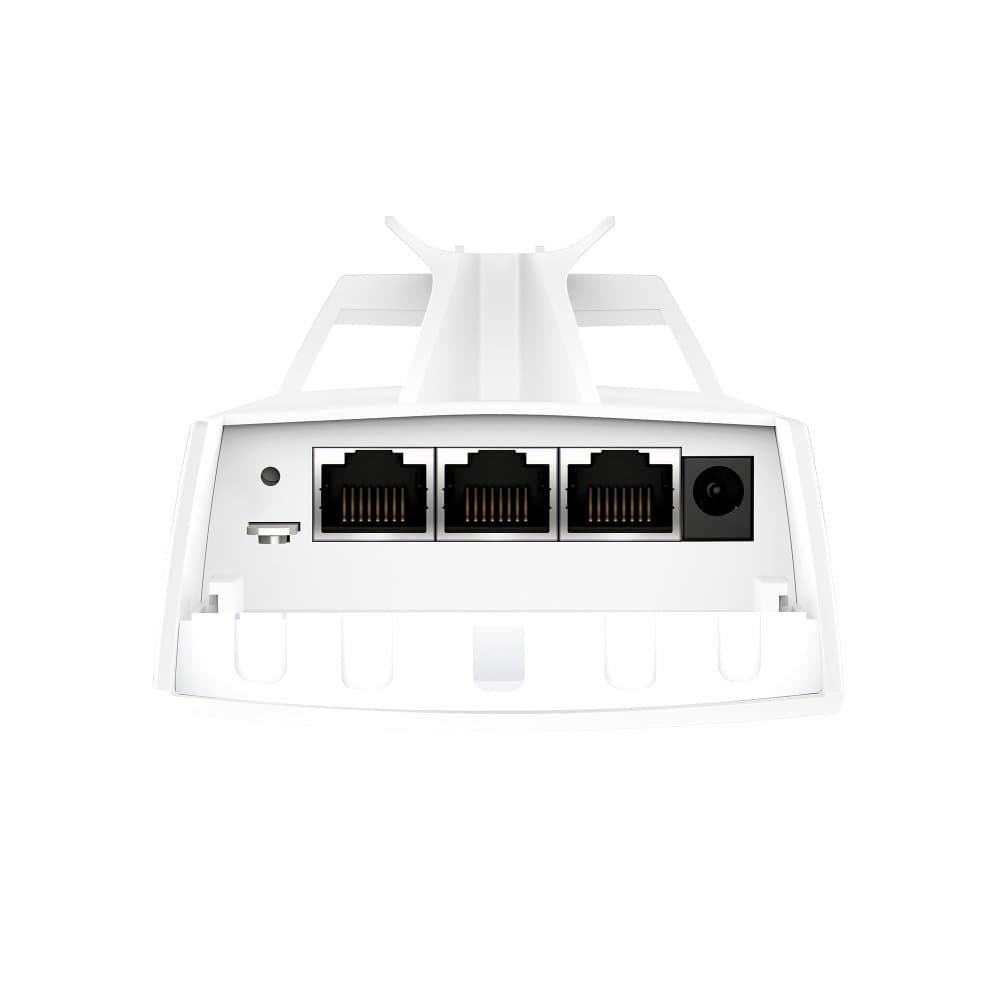

| Interface | 3x Gigabit Ethernet Ports |
|---|---|
| Button | Reset |
| Power Supply | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
| Power Consumption | 11.5W |
| Dimensions ( W x D x H ) | 8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm) |
| Antenna Type | Internal 2×2 Dual-polarized directional MIMO antennas |
| 5 GHz | 11.0 dBi |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole mounting (Accessories included) |
| Coverage | 5000m(16400ft) 5 |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac |
| Frequency | 5 GHz |
| Signal Rate | 5 GHz: Up to 867 Mbps |
| Wireless Functions | • Mesh *4 |
| • MU-MIMO | 5G 2×2 MU-MIMO DL |
| • Load Balance | |
| • Beamforming | |
| • Airtime Fairness | |
| • Multiple SSIDs | 8 |
| • Wireless Statistics | |
| • Wireless Schedule | |
| • Reboot Schedule | |
| • RADIUS Accounting | |
| • MAC Authentication | |
| • Static IP/Dynamic IP | |
| Wireless Security | • VLAN |
| • Access Control | |
| • Rogue AP Detection | |
| • Captive Portal Authentication *4 | |
| • Maximum number of MAC Filter | 4,000 |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise | |
| Transmission Power | • CE: |
| <20 dBm(2.4 GHz, EIRP) | |
| <23 dBm(5 GHz, EIRP) | |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| • Omada Cloud-Based Controller | |
| Cloud Access | Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based Management | Yes |
| Certification | CE, RoHS |
| Package Contents | • EAP215-Bridge KIT |
| • Passive PoE Adapter | |
| • Power Cord | |
| • Installation Guide | |
| • Mounting Kit | |
| Environment | • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); |
| • Storage Temperature | -40 °C–70 °C (-40 °F–158 °F); |
| • Operating Humidity | 10%–90% non-condensing; |
| • Storage Humidity | 5%–90% non-condensing |
| รหัสสินค้า (SKU) | EAP215-BRIDGE |
| หมวดหมู่ | แอคเซสพอยต์ & Wi-Fi |
| ประเภทการจัดส่ง | จัดส่งสินค้าจริง |
