SKU EAP683UR
จัดส่งภายใน 3-5 วันทำการรบกวนติดต่อสอบถามก่อนสั่งซื้อ
แบบ: มาตรฐาน

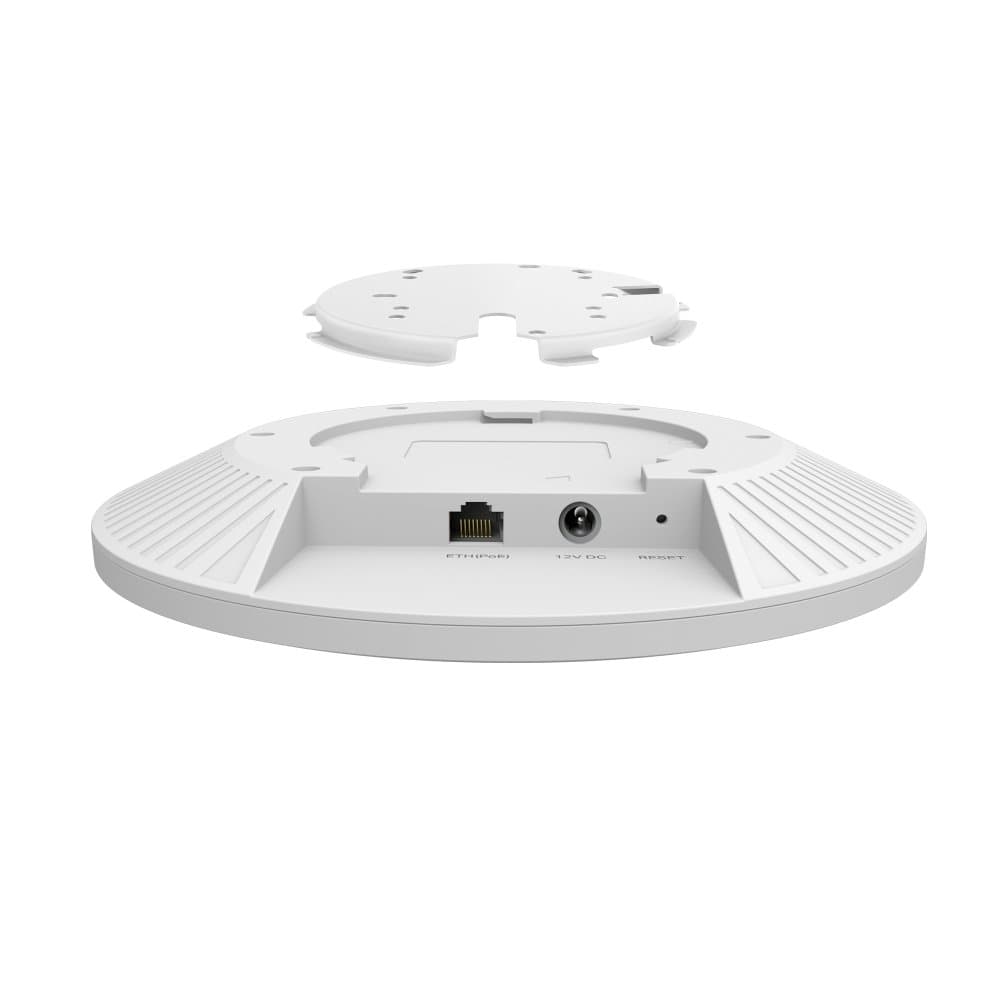

| Interface | 1× 2.5 Gigabit PoE+ Port |
|---|---|
| Button | Reset |
| Power Supply | • 802.3at PoE |
| • 12 V / 2 A DCNote：Power adapter is not included. | |
| Power Consumption | • EU: 20.43W |
| • US | 23.69W |
| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna Type | Internal Omni |
| • 2.4 GHz | 4× 4 dBi |
| • 5 GHz | 4× 5 dBi |
| Bluetooth | Yes |

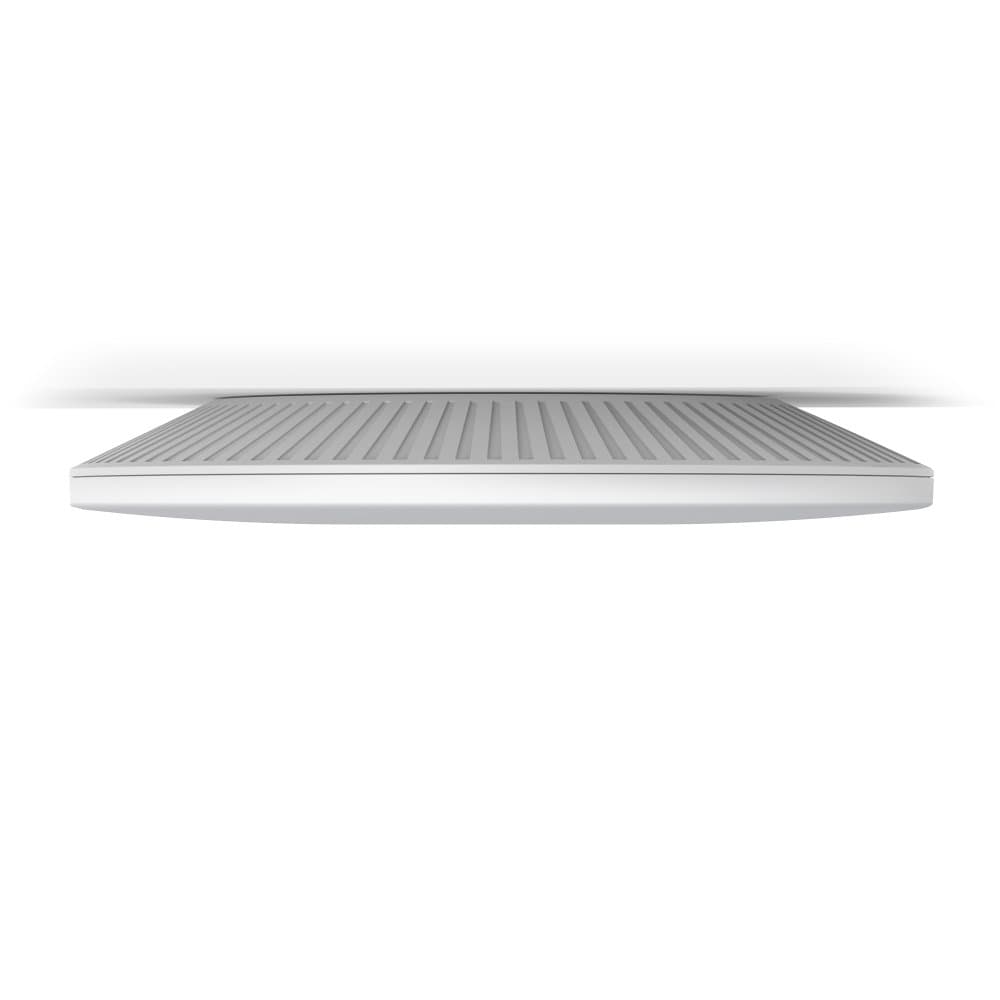

| Mounting | Ceiling /Wall Mounting (Kits included) |
| Coverage | 185㎡(2000ft²) *** |
| Concurrent Clients | 512** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 4804 Mbps |
| • 2.4 GHz | Up to 1148 Mbps |
| Wireless Security | • Captive Portal Authentication § |
| • Access Control | |
| • Wireless Mac Address Filtering | |
| • Wireless Isolation Between Clients | |
| • SSID to VLAN Mapping | |
| • Rogue AP Detection | |
| • 802.1X Support | |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | • CE: <20 dBm(2.4 GHz, EIRP) |
| <23 dBm(5 GHz, EIRP) | |
| <28 dBm(5 GHz, EIRP) | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| • Omada Cloud-Based Controller | |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Certification | CE,FCC,RoHS |
| Package Contents | • EAP683 LR |
| • Ceiling/Wall Mounting Kits | |
| • Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) |
| • Storage Temperature | -40–70 ℃ (-40–158 ℉) |
| • Operating Humidity | 10–90% RH non-condensing |
| • Storage Humidity | 5–90% RH non-condensing |
| รหัสสินค้า (SKU) | EAP683UR |
| หมวดหมู่ | แอคเซสพอยต์ & Wi-Fi |
| ประเภทการจัดส่ง | จัดส่งสินค้าจริง |
