Name: TP-Link SG2005P-PD Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
Brand: TP-Link
SKU: SG2005P-PD

รุ่น / SKU

SG2005P-PD

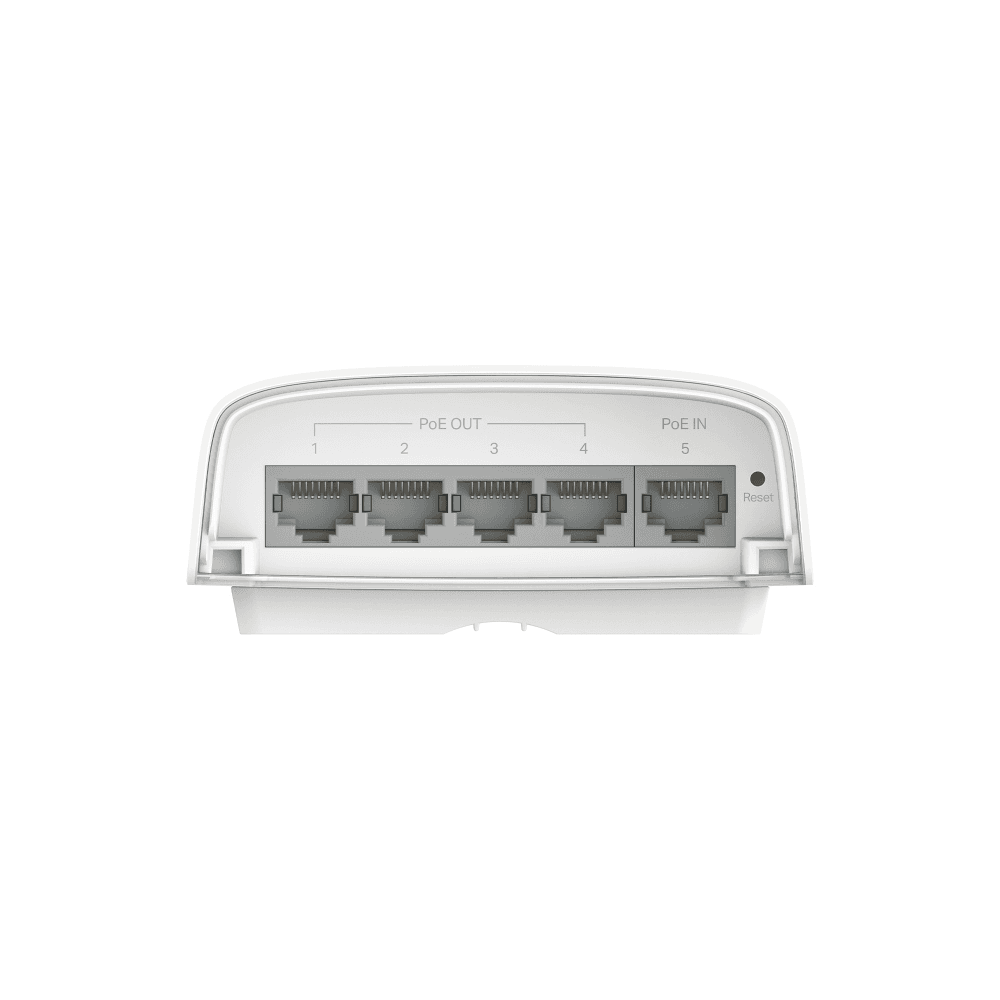

Interface

• 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt)
4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at PoE)

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

PoE Ports (RJ45)

• PoE In Port: Port 5, Compliance with 802.3af/at/bt

PoE Out Ports

Ports 1-4, compliance with 802.3af/at PoE

Power Supply

Obtain Power from 802.3af/at/bt PoE Source

PoE Power Budget

64 W when powered by 802.3bt Type 4 (90 W)
44 W when powered by 802.3bt Type 3 (60 W)
19 W when powered by 802.3at
6 W when powered by 802.3af

Max. Power Consumption

71.5 W (when powered by 802.3bt Type 4 (90 W))

Surge Protection

±6 kV

Fan Quantity

Fanless

Operating Temperature

-40 to 60 °C (-40 to 140 °F)

Dimensions ( W x D x H )

3.9 × 1.5 × 6.7 in (100 × 38.5 × 170 mm)

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

100BASE-TX/1000Base-T

UTP category 5, 5e or above cable (maximum 100m)

Enclosure

IP66 dustproof & waterproof

Max Heat Dissipation

243.99 BTU/hr (when powered by 802.3bt Type 4 (90 W))

ระยะเวลารับประกัน

3 ปี
