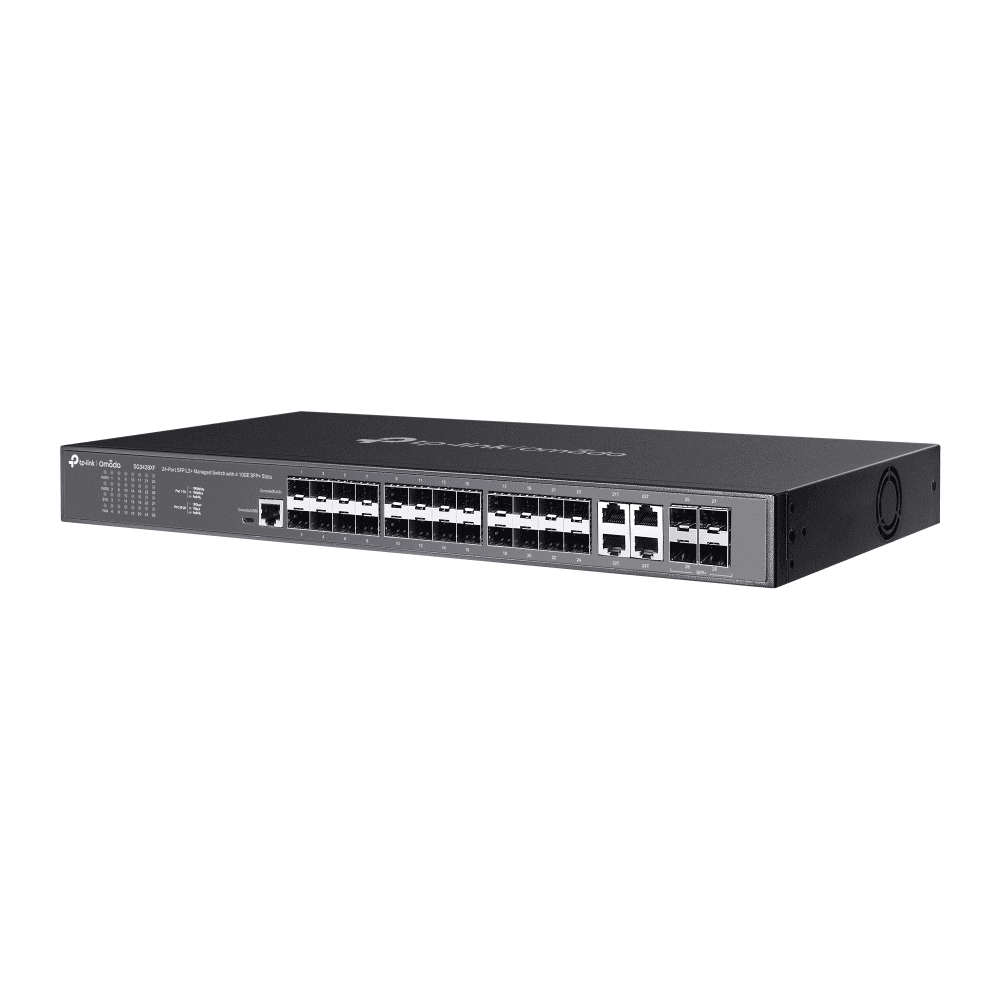

Name: TP-Link SG3428XF JetStream™ 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots
Brand: TP-Link
SKU: SG3428XF

รายละเอียดสินค้า

รุ่น / SKU	SG3428XF
IPv6	• IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6
IPv6 applications	DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI Command Line Interface (CLI) through the console port, telnet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Switching Capacity	128 Gbps
Packet Forwarding Rate	95.23 Mpps
MAC Address Table	16 K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
Storage Temperature	-40–70 ℃ (-40–158 ℉)
Storage Humidity	5–90% RH non-condensing
Bandwidth Control	Port/Flow-based Rating Limiting Smoother Performance
Interface	• 20× Gigabit SFP Slots 4× Gigabit Combo SFP/RJ45 Ports 4× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro-USB Console Port

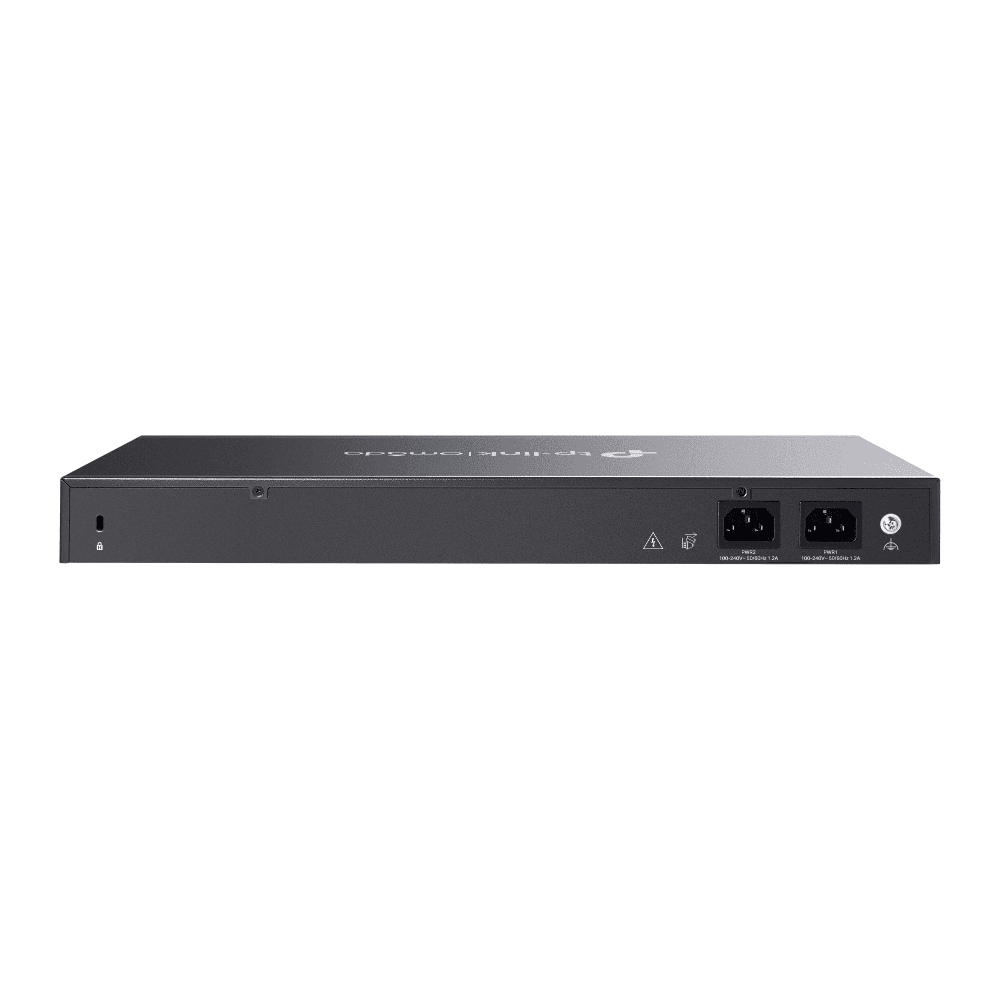

Power Supply	• Dual Redundant Power Supplies 100-240 V AC~50/60 Hz
Max Power Consumption	35.7 W (110 V/60 Hz)
Physical Security Lock	√
L2 and L2+ Features	• 128 IP Interfaces: Support IPv4/IPv6 Interface
Advanced Features	• Automatic Device Discovery † Batch Configuration † Batch Firmware Upgrading † Intelligent Network Monitoring † Abnormal Event Warnings † Unified Configuration † Reboot Schedule †
ISP Features *	L2PT (Layer 2 Protocol Tunneling) Device Link Detect Protocol (DLDP) PPPoE ID Insertion ERPS 802.3ah Ethernet Link OAM DDM sFlow
VLAN	• VLAN Group: Max 4K VLAN Groups 802.1q Tagged VLAN
MAC VLAN	30 Entries
Protocol VLAN	Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP
VLAN VPN	VLAN Mapping, VLAN Replace Voice VLAN
MAC ACL	Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
IP ACL	Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS Combined ACL Packet Content ACL IPv6 ACL
Fan Quantity	1 Fan
Dimensions ( W x D x H )	17.3×8.7×1.7 in (440×220×44 mm)
Mounting	Rack Mountable
Certification	CE, FCC, RoHS
Package Contents	• SG3428XF Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
Environment	• Operating Temperature: 0–45 ℃ (32–113 ℉);
Operating Humidity	10–90% RH non-condensing
Max Heat Dissipation	121.81 BTU/hr (110 V/60 Hz)
Quality of Service	• 8 priority queues 802.1p CoS/DSCP priority
Queue scheduling	SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
Action for Flows	QoS remark (802.1P Remark, DSCP Remark)
Static Routing	48 IPv4/IPv6 Static Routes
Static ARP	128 static entries 512 ARP Entries Proxy ARP Gratuitous ARP DHCP Server
DHCP Relay	DHCP Interface Relay, DHCP VLAN Relay DHCP L2 Relay Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring
L2 Multicast	• Supports 1000 (IPv4, IPv6) IGMP groups IGMP Snooping IGMP Authentication Multicast VLAN Registration (MVR) MLD Snooping
Multicast Filtering	256 profiles and 16 entries per profile
Access Control List	• Time-based ACL
Policy	Mirroring, Redirect, Rate Limit, QoS Remark ACL applies to Port/VLAN
MIBs	• MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIB
SNMP v1/v2c/v3	Trap/Inform, RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
ระยะเวลารับประกัน	ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต)
