| รุ่น / SKU | SG3452XP |
|---|
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
|---|
| Centralized Management | - • Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller
|
|---|
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
|---|
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
|---|
| Management Features | - • Web-based GUI
- Command Line Interface (CLI) through the console port, telnet
- SNMP v1/v2c/v3
- Trap/Inform
- RMON (1,2,3,9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP AutoInstall
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- EEE
- Password Recovery
- SNTP
- System Log
|
|---|
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
|---|
| Switching Capacity | 176 Gbps |
|---|
| Packet Forwarding Rate | 130.9 Mpps |
|---|
| MAC Address Table | 16 K |
|---|
| Packet Buffer Memory | 12 Mbit |
|---|
| Jumbo Frame | 9 KB |
|---|
| L3 Features | - • 16 IPv4/IPv6 Interfaces
- Static Routing
- 48 static routes
- Static ARP
- 128 Static Entries
- Proxy ARP
- Gratuitous ARP
- DHCP Server
- DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
- DHCP L2 Relay
|
|---|
| Storage Temperature | -40–70 ℃ (-40–158 ℉) |
|---|
| Storage Humidity | 5–90% RH non-condensing |
|---|

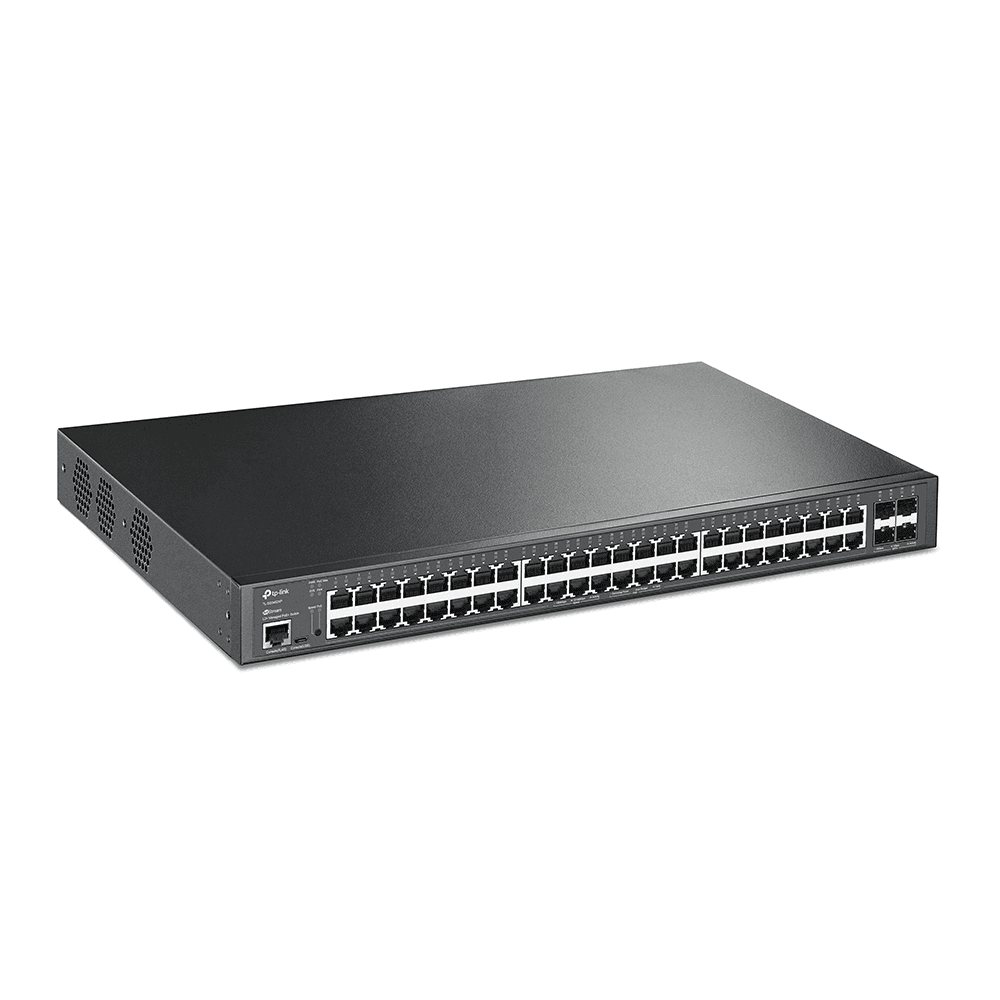

| Interface | - • 48× 10/100/1000 Mbps RJ45 PoE+ Ports
- 4× 10G SFP+ Slots
- 1× RJ45 Console Port
- 1× Micro-USB Console Port
|
|---|
| PoE+ Ports(RJ45) | • Standard: 802.3at/af compliant |
|---|
| PoE+ Ports | 48 Ports, up to 30 W per port |
|---|

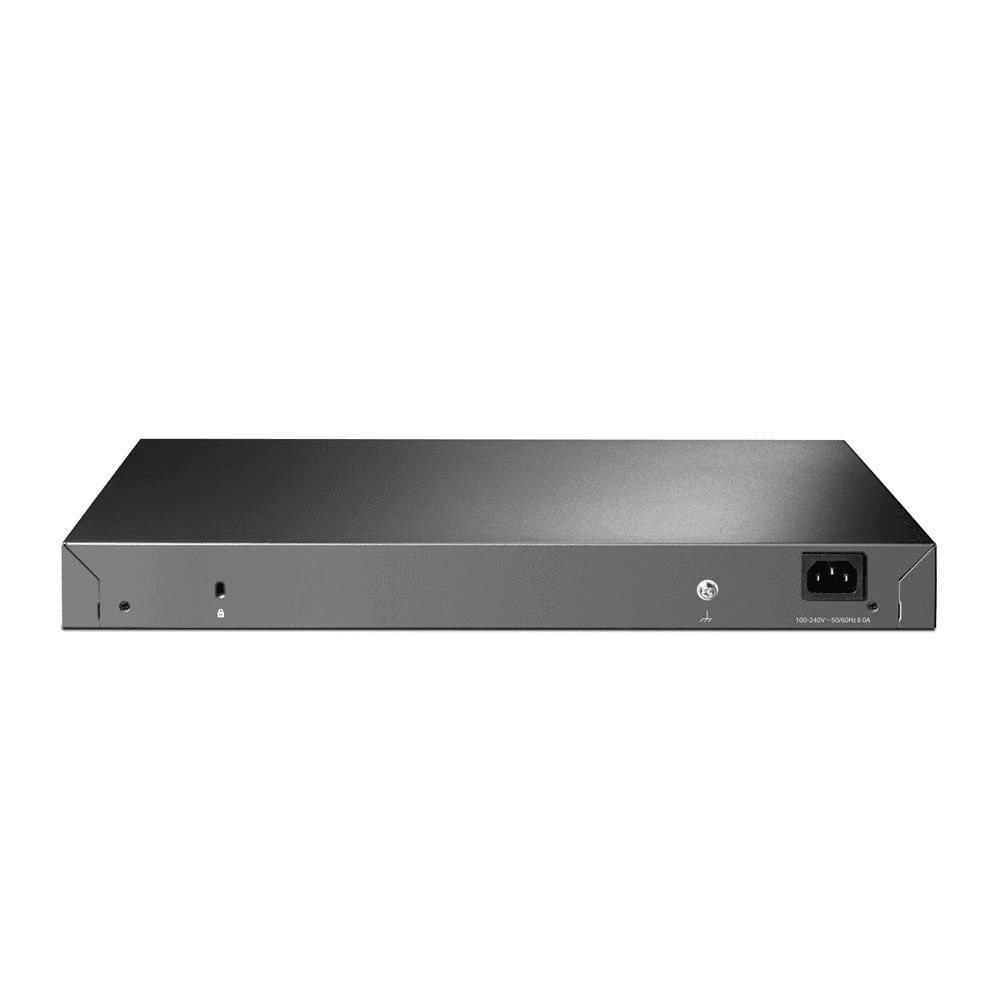

| Power Supply | 100-240 V AC~50/60 Hz |
|---|
| Power Budget | 500 W* |
|---|
| Max Power Consumption | - • 49.19 W (110V/60Hz) ( no PD device connected)
- 635.7 W (110V/60Hz) ( with 500 W PD device connected)
|
|---|
| Advanced Features | - • Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
|
|---|
| VLAN | - • VLAN Group
- Max 4K VLAN Groups
- 802.1Q Tagged VLAN
|
|---|
| MAC VLAN | 30 Entries |
|---|
| Protocol VLAN | - Protocol Template 16, Protocol VLAN 16
- Private VLAN
- GVRP
- VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
- Voice VLAN
|
|---|
| Fan Quantity | 3 |
|---|
| Dimensions ( W x D x H ) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
|---|
| Mounting | Rack Mountable |
|---|
| Certification | CE, FCC, RoHS |
|---|
| Package Contents | - • TL-SG3452XP Switch
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
|
|---|
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉); |
|---|
| Operating Humidity | 10–90% RH non-condensing |
|---|
| Max Heat Dissipation | - • 167.85 BTU/hr (110 V/60 Hz) (no PD connected)
- 2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected)
|
|---|
| Quality of Service | - • 8 priority queues
- 802.1p CoS/DSCP priority
- Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
- Bandwidth Control
- Port/Flow based Rating Limiting
- Smoother Performance
- Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
|
|---|
| L2 Multicast | - • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
- IGMP Authentication
- MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
- MVR
|
|---|
| Multicast Filtering | 256 profiles and 16 entries per profile |
|---|
| Access Control List | - • Time-based ACL
- MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
- IP ACL
- Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
- Combined ACL
- Packet Content ACL
- IPv6 ACL
- Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
- ACL apply to Port/VLAN
|
|---|
| MIBs | - • MIB II (RFC1213)
- Interface MIB (RFC2233)
- Ethernet Interface MIB (RFC1643)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- RMON MIB (RFC2819)
- RMON2 MIB (RFC2021)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIB
|
|---|
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
|---|
