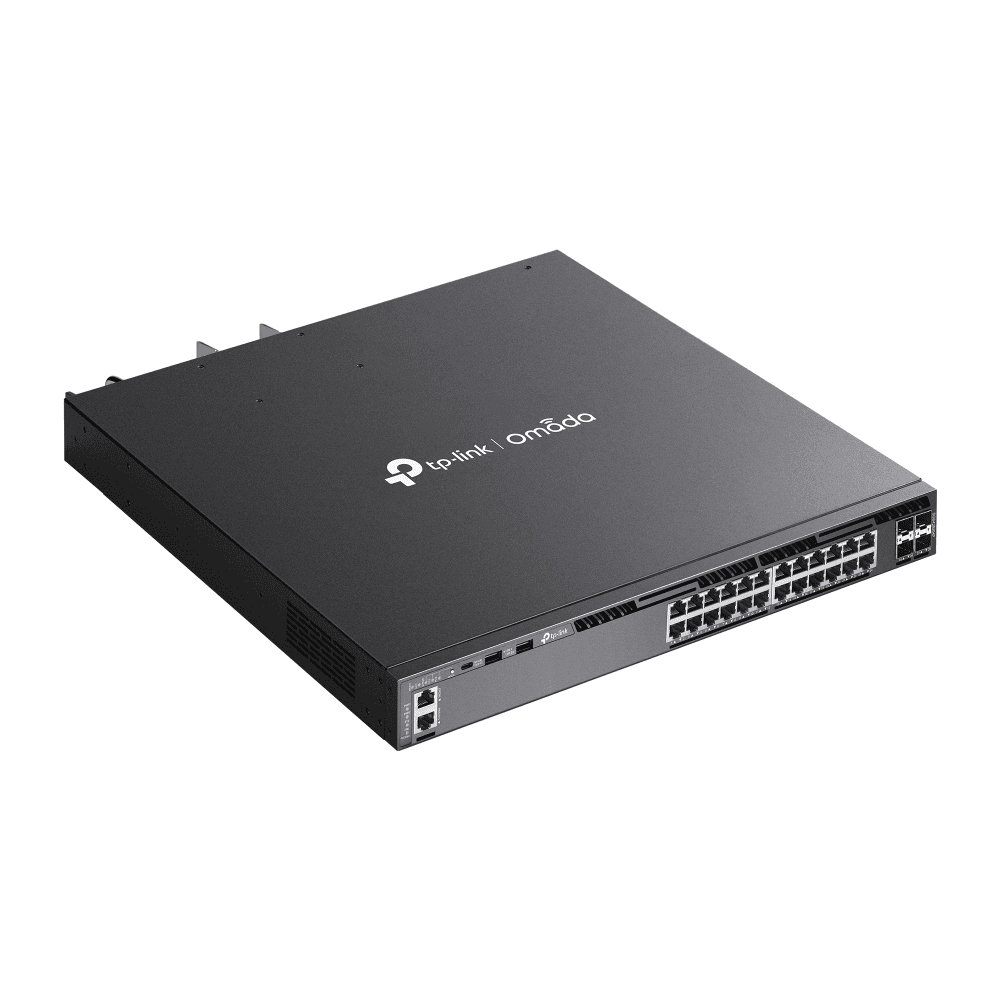

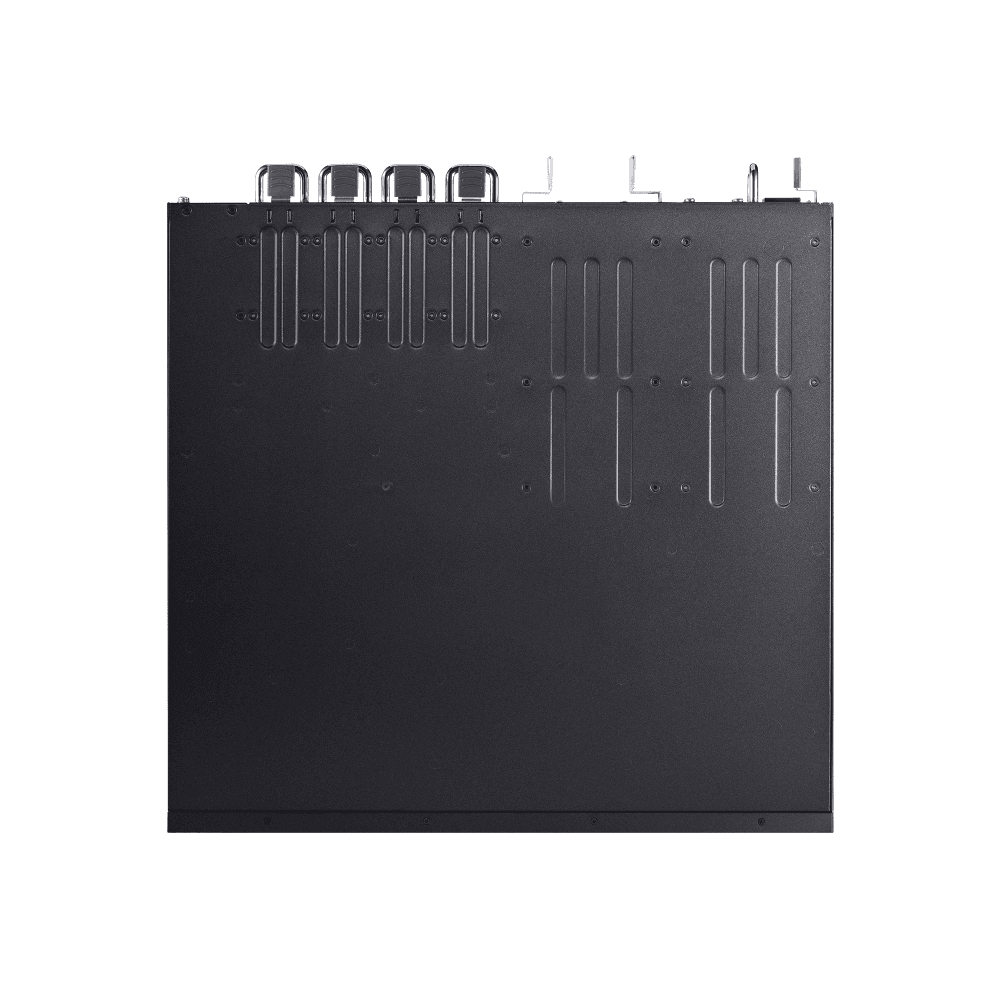

| รุ่น / SKU | SG6428XHP |
|---|
| Omada App | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
|---|
| Centralized Management | - • Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
|
|---|
| Cloud Access | Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
|---|
| Zero-Touch Provisioning | Yes. Requiring the use of the Omada Cloud-Based Controller. |
|---|
| Management Features | - • Web-based GUI
- Command Line Interface (CLI) through console port, telnet
- SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP Auto Install
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- Password Recovery
- SNTP
- System Log
- EEE
|
|---|
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
|---|
| Switching Capacity | 128 Gbps per Unit |
|---|
| Stacking | • Stacking Number: 4 |
|---|
| Stacking Port | 10G SFP+ Slot (all uplink ports can be used as stacking ports) |
|---|
| Packet Forwarding Rate | 95.2 Mpps |
|---|
| MAC Address Table | 32 K |
|---|
| Packet Buffer Memory | 3 MB |
|---|
| Jumbo Frame | 9 KB |
|---|
| Storage Temperature | -40–70 ℃ (-40–158 ℉) |
|---|
| Storage Humidity | 5–90% RH non-condensing |
|---|
| Stack Bandwidth | 20 Gbps Per Port (Full-Duplex) |
|---|

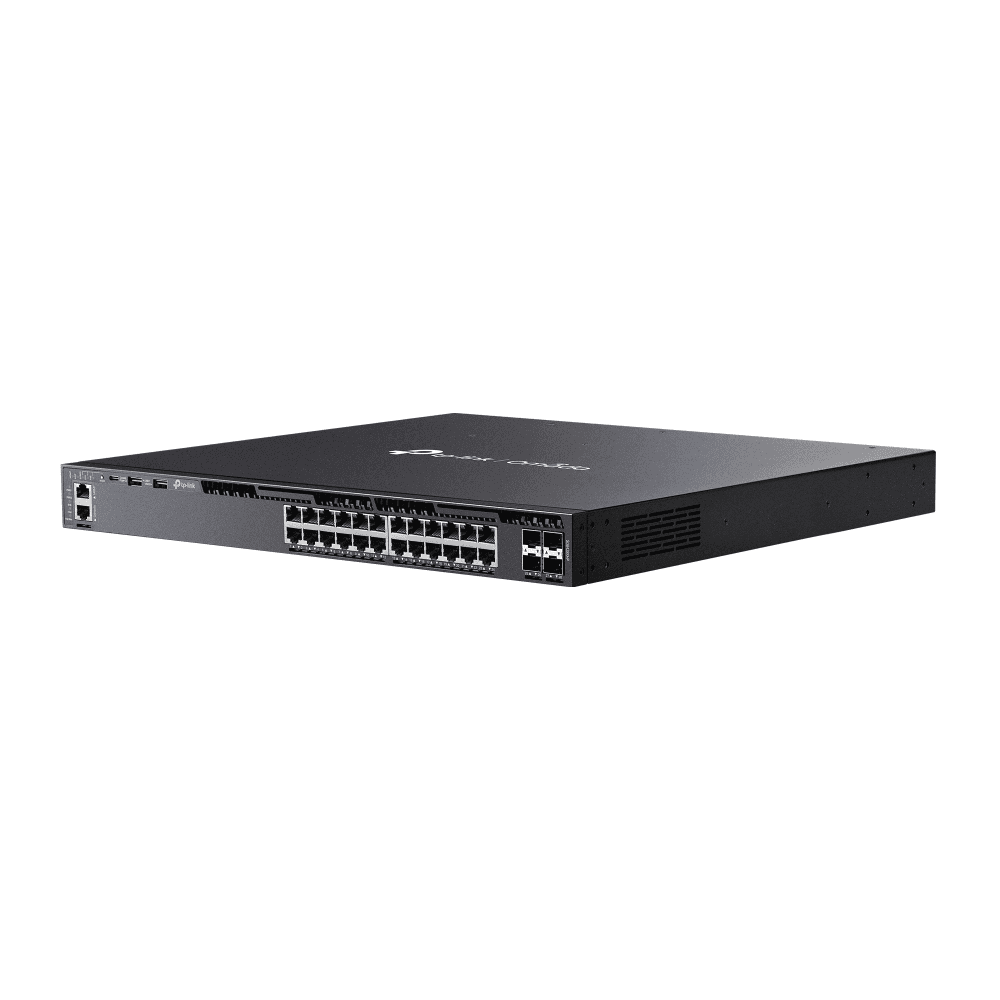

| Interface | - • 24× 10/100/1000 Mbps PoE+ RJ45 Ports
- 4× 10G SFP+ Slots
- 2× USB 2.0 Ports
- 1× RJ45 Console Port
- 1× USB Type-C Console Port
- 1× RJ45 Management Port
|
|---|
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant |
|---|
| PoE+ Ports | 24 Ports, up to 30 W per port |
|---|
| Power Supply | - Two Field-replaceable and Hot-swappable Power Supply Modules** (100–240 VAC, 50/60 Hz)
- **Shipping with one PSM500-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
|
|---|
| PoE Power Budget | up to 720 W**The total PoE budget varies with the power supply modules. |
|---|
| Max Power Consumption | - • 42.9 W (110 V/60 Hz) (With no PD connected)
- 916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC)
|
|---|
| L2 and L2+ Features | - • Link Aggregation
- Spanning Tree Protocol
- Port-based and VLAN-based Loopback Detection
- 802.3x Flow Control
- Supports 2,048 IGMP groups
- ERPS
- Mirroring
- RSPAN
- MAC Address Table
- PIM-DM (IPv4)
- Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering
|
|---|
| Advanced Features | - • Automatic Device Discovery †
- Batch Configuration †
- Batch Firmware Upgrading †
- Intelligent Network Monitoring †
- Abnormal Event Warnings †
- Unified Configuration †
|
|---|
| Reboot Schedule † ISP Features | - 802.3ah Ethernet Link OAM
- L2PT (Layer 2 Protocol Tunneling)
- Device Link Detect Protocol (DLDP)
- DDM
- sFlow
|
|---|
| VLAN | - • Max 4K VLAN Group (802.1q VLAN)
- 802.1Q Tagged VLAN
|
|---|
| MAC VLAN Entries | - 200
- Multicast VLAN
- Management VLAN
|
|---|
| VLAN VPN (QinQ) | |
|---|
| Protocol VLAN | - Protocol Template 16, Protocol VLAN 12 entries
- VLAN VPN
- Voice VLAN
- Private VLAN
|
|---|

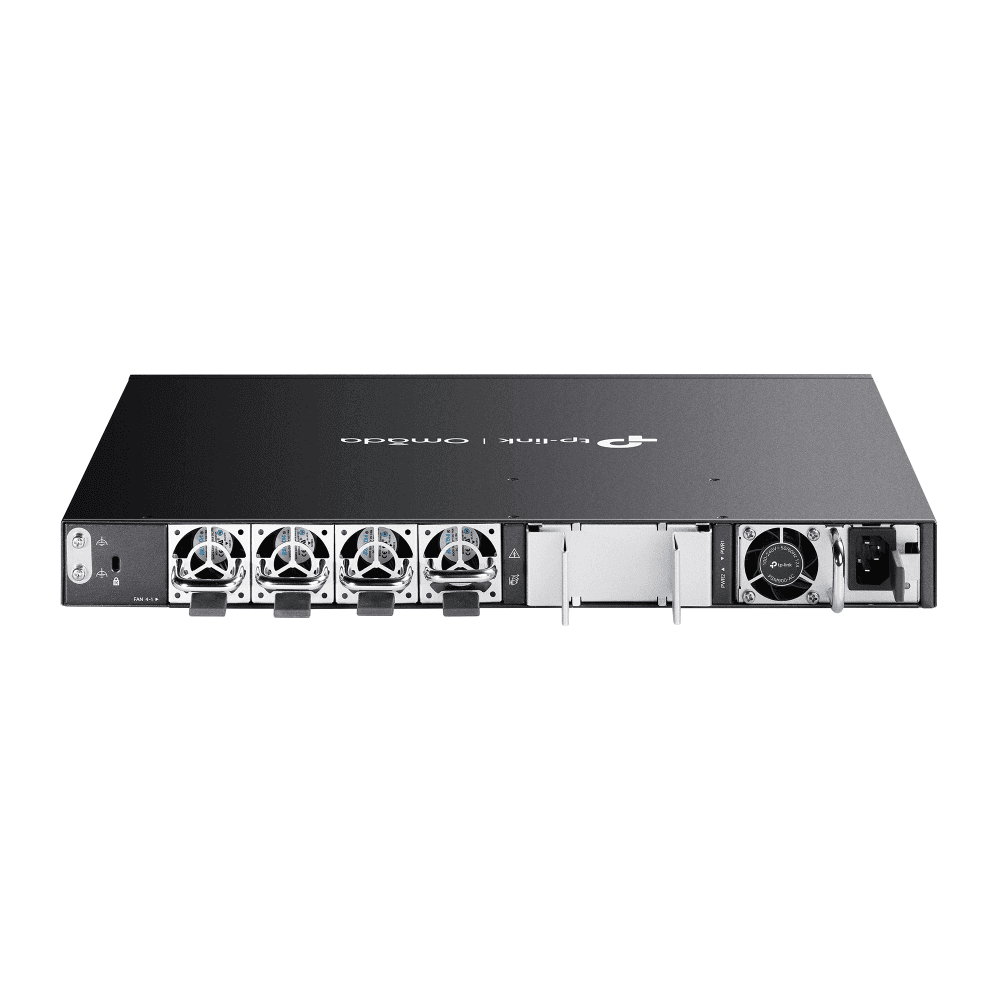

| Fan Quantity | Four Field-replaceable and Hot-swappable Fans |
|---|
| Dimensions ( W x D x H ) | 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) |
|---|
| Mounting | Rackmountable |
|---|
| Package Contents | - • SG6428XHP Switch
- Power Cord
- RJ45 Console Cable
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
|
|---|
| Environment | • Operating Temperature: 0–45 ℃ (32–113 ℉); |
|---|
| Operating Humidity | 10–90% RH non-condensing |
|---|
| Max Heat Dissipation | - • 146.29 BTU/hr (110 V/60 Hz) (With no PD connected)
- 3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC)
|
|---|
| Quality of Service | - • Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
- Bandwidth Control
- Rate Limit
- Storm Control
- Voice VLAN
- User-Defined OUI
- Smoother Performance
- Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
|
|---|
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
|---|
