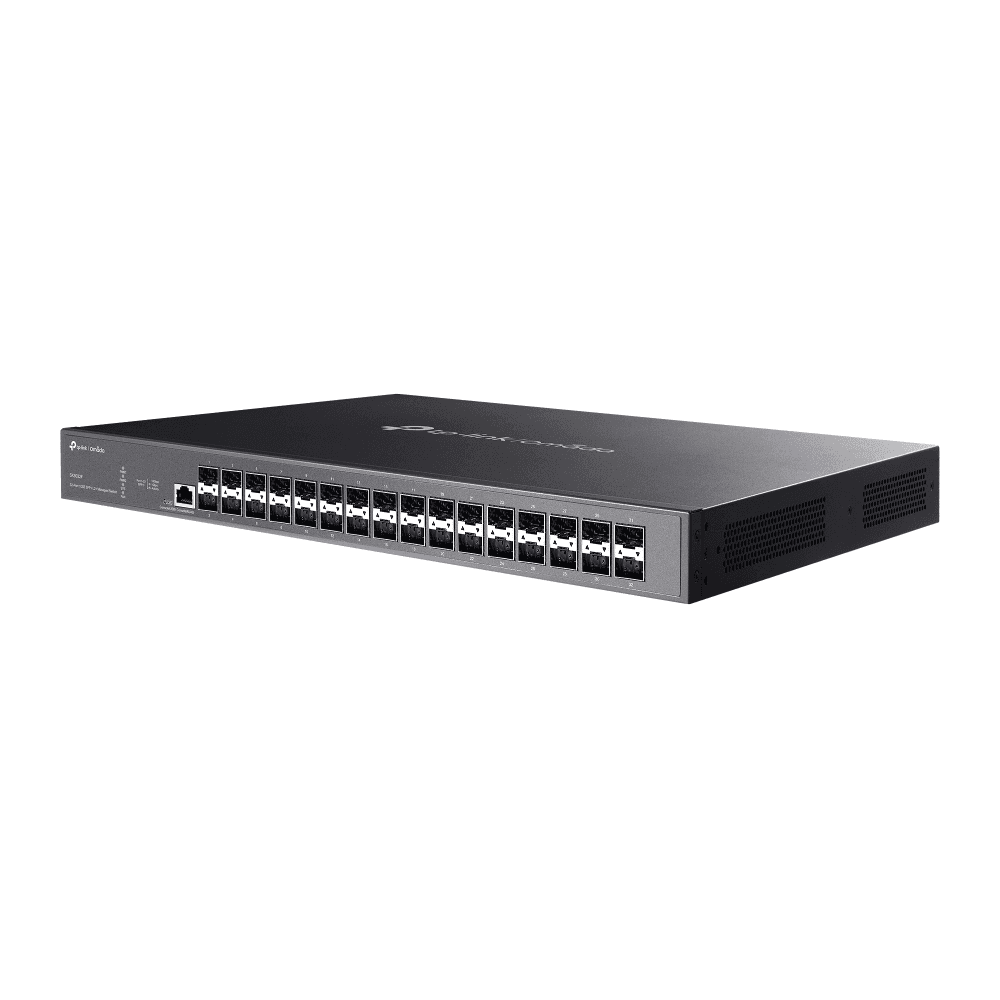

| รุ่น / SKU | SX3032F |
|---|---|
| IPv6 |
|
| IPv6 applications | DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management |
|
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller. |
| Management Features |
|
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Switching Capacity | 640 Gbps |
| Packet Forwarding Rate | 240 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 24 Mbit |
| Jumbo Frame | 9 KB |
| Storage Temperature | -40–70 ℃ (-40–158 ℉) |
| Storage Humidity | 5–90% RH non-condensing |
| Bandwidth Control |
|
| Interface |
|
| Power Supply |
|
| Max Power Consumption | 49.4 W (220 V / 50 Hz) |
| Physical Security Lock | √ |
| L2 and L2+ Features | • 128 IP Interfaces: Support IPv4/IPv6 Interface |
| Advanced Features |
|
| Reboot Schedule † ISP Features |
|
| VLAN |
|
| MAC VLAN |
|
| VLAN VPN (QinQ) |
|
| MAC ACL | Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type |
| IP ACL |
|
| Fan Quantity | 2 internal fixed fans |
| Dimensions ( W x D x H ) | 17.3×13.0×1.7 in (440×330×44 mm) |
| Mounting | Rack Mountable |
| Certification | CE, FCC, RoHS |
| Package Contents |
|
| Environment | • Operating Temperature: -5–45 °C (23–113 °F); |
| Operating Humidity | 10–90% RH non-condensing |
| Quality of Service |
|
| Queue scheduling | SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR |
| Action for Flows | QoS remark (802.1P Remark, DSCP Remark) |
| Static Routing | 48 IPv4/IPv6 Static Routes |
| Static ARP |
|
| DHCP Relay |
|
| L2 Multicast |
|
| Multicast Filtering | 256 profiles and 16 entries per profile |
| Access Control List | • Time-based ACL |
| Policy |
|
| MIBs |
|
| SNMP v1/v2c/v3 |
|
| ระยะเวลารับประกัน | ตลอดอายุการใช้งาน (สิ้นสุด 3 ปีหลังผู้ผลิตประกาศหยุดผลิต) |
