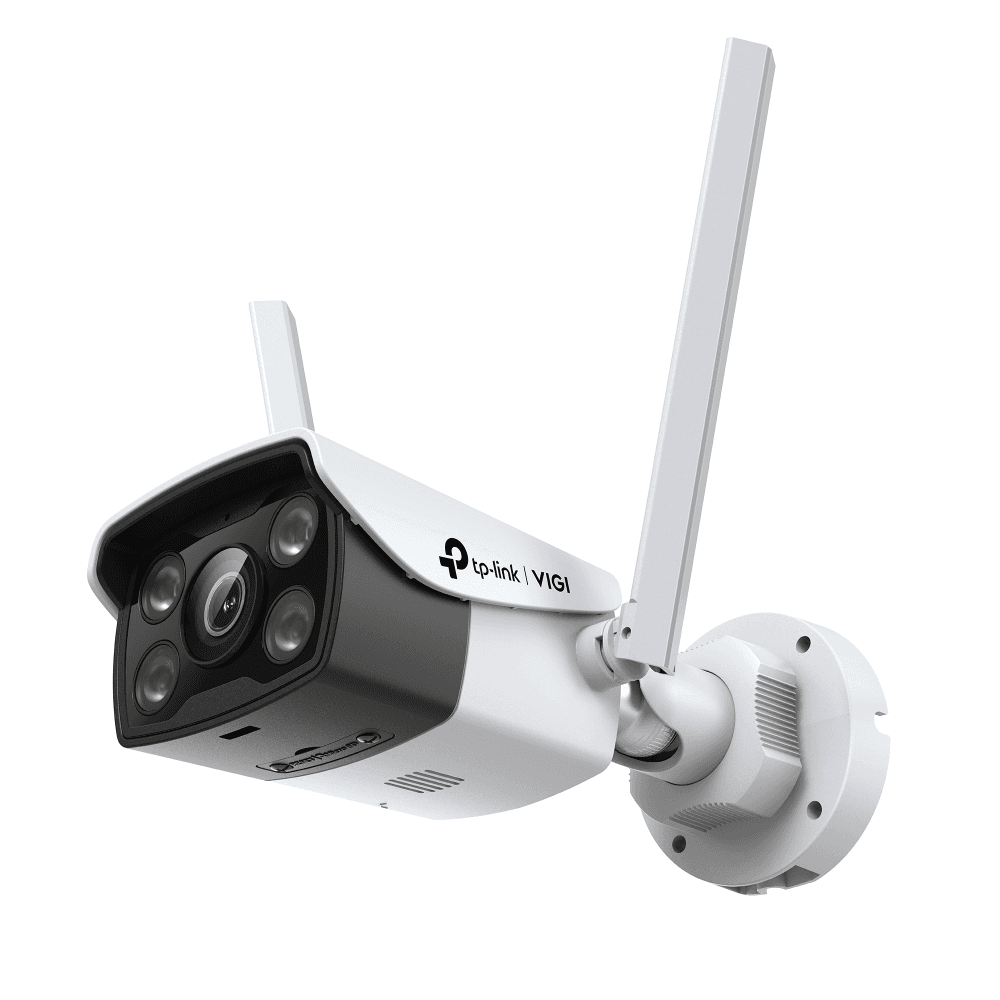

Name: TP-LINK VIGI C340-W(4mm) 4MP Full-Color Wi-Fi Bullet Network Camera
Brand: TP-Link

รายละเอียดสินค้า

รุ่น / SKU	VIGI C340-W(4MM)
Type	Fixed Focal Lens
Web Browser	• Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Type	2.4GHz Welded Dipole Omni-Directional Antenna
Audio Input	Yes
Throughput Monitoring	N/A
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Storage Temperature	-40–60 °C
Storage Humidity	95% or Less (Non-Condensing)
Range	• Pan: 0° to 360°
Range	30m
Wide Dynamic Range	DWDR
Client	VIGI App, VIGI Security Manager, Web UI
WiFi Channels	• UN: 1-13
Frequency	2.4 GHz
Wireless Transmit Power	High
Auto Wireless Channel	N/A
Wireless Statistics	N/A
Radio Bandwidth	• Auto: N/A
Wireless Rate	• 11Mbps(802.11b) 54Mbps(802.11g) 150/300Mbps(802.11n)
Wireless Security	WPA-PSK/WPA2-PSK
Wireless Mode	AP, AP Client
Antenna	• Quantity: 2
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port
Audio Communication	Two-Way Audio
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Audio Bit Rate	64 Kbps(G.711 alaw)
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
Power	DC Power Port
Power Supply	9-12V DC/0.85-1.0A, 5.5mm Coaxial Power Plug
Image Sensor	1/3” Progressive Scan CMOS
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Focal Length	4 mm
FOV	Horizontal FOV: 76.3°, Vertical FOV: 40.6°, Diagonal FOV: 90.2°
Lens Mount	M12
DORI Distance	• Detect: 80 m (262 ft)
Observe	33 m (109 ft)
Recognize	16 m (52 ft)
Identify	8 m (26 ft)
IR LED	• Quantity: 2
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
Max. Resolution	2560 X 1440
Main Stream	• Frame Rate：
Resolution	2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Sub-Stream	• Frame Rate：
Resolution	704×576, 640×480, 352×288, 320×240
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream	H.265/H.264
Video Bit Rate	• Main Stream: 256 Kbps to 3 Mbps
Sub-Stream	64 Kbps to 512 Kbps
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm Linkage	• Memory Card Video Recording Message Push Audible Warning White Light Flashing Upload Capture to FTP
Alarm	N/A
Reset Button	Yes
Protection	IP66 Waterproof
Environment Noise Filtering	Yes
Operating Temperature	-30–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Package Content	• VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Power Adapter Mounting Accessories
Material	Plastic
Net Weight	0.38 Kg
Gross Weight	0.66 Kg
Product Dimensions (L x W x H)	78.5 × 188.0 × 161.89 mm (3.09 × 7.40 × 3.67 in)
Certifications	CE NTRA JRF VCCI BSMI NCC
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/white light
Aperture	F1.6
Tilt	0° to 90°
Rotation	0° to 360°
Wavelength	850nm
White LED	• Quantity: 2
50Hz	1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz	1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Note	If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Image Settings	• Mirror Brightness Contrast Saturation Sharpness, Exposure, WDR, White Balance Prevent Overexposure to Infrared Light HLC Adjustable by Client Software Rotation (90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
Protocol	• TCP/IP UDP ICMP HTTP HTTPS DHCP, DNS, RTSP NTP UPnP SSL/TLS FTP/SFTP RTP IPv4 IPv6 ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Cloud	Yes
Standards and Protocols	IEEE 802.11b/g/n
US	1-11
20M	Yes
40M	Yes
Smart Event	• Intrusion Detection Line-Crossing Detection Region Entering Detection Region Exiting Detection Object Abandoned/Removal Detection Scene Change Detection Abnormal Sound Detection People Detection Vehicle Detection Loitering Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception ( Illegal Login)
Gain	2.0dBi
ระยะเวลารับประกัน	3 ปี
