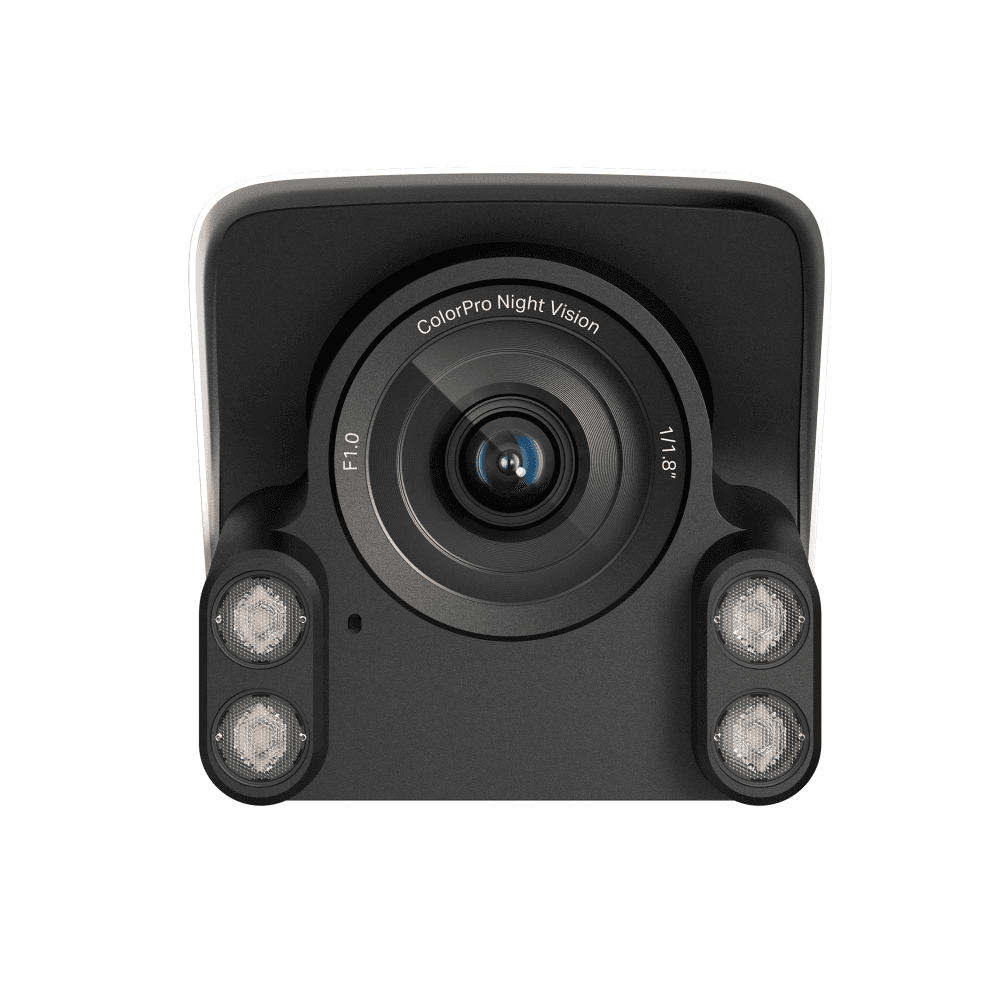

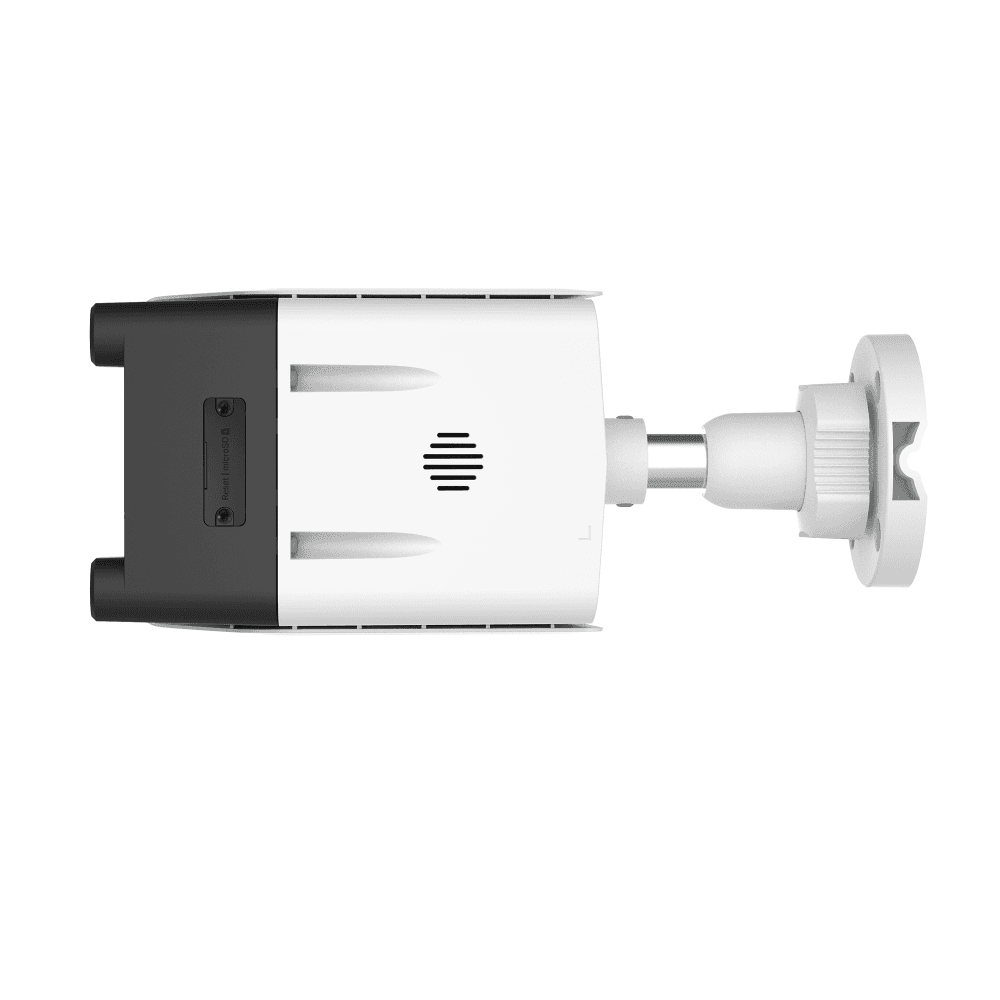

| รุ่น / SKU | VIGI C340S(4MM) |
|---|---|
| Type | Fixed Focal Lens |
| Web Browser |
|
| Audio Input | Yes |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB † |
| Storage Temperature | -40–60 °C |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
| Range | 30m |
| Wide Dynamic Range | 120 dB |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Audio Communication | Two-Way Audio |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| Power | DC Power Port |
| Power Supply | 12V DC ± 5%, Max. 10.1 W, 5.5mm Coaxial Power Plug |
| PoE | 802.3af/at, class 0, Max. 11.5 W |
| Image Sensor | 1/1.8” Progressive Scan CMOS |
| Day/Night Mechanism | NA |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Focal Length | 4 mm |
| FOV | 4mm: Horizontal FOV: 95.2°, Vertical FOV: 50.6°, Diagonal FOV: 114.7° |
| Lens Mount | M16*P 0.5 |
| DORI Distance | 4 mm: |
| Detect | 70 m (231 ft) |
| Observe | 29 m (96 ft) |
| Recognize | 14 m (46 ft) |
| Identify | 7 m (23 ft) |
| IR LED | N/A |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2688 x 1520 |
| Main Stream | Frame Rate： |
| Resolution | 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 |
| Sub-Stream | Frame Rate： |
| Resolution | 640×480, 352×288, 320×240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream | H.265/H.264 |
| Video Bit Rate | Main Stream: 256 Kbps to 6 Mbps |
| Sub-Stream | 64 Kbps to 512 Kbps |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Alarm | N/A |
| Reset Button | Yes |
| Protection | IP67 |
| Environment Noise Filtering | Yes |
| Operating Temperature | -30–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Package Content |
|
| Material | Front Cover: Metal |
| Product Dimensions (L x W x H) | 102× 236× 99 mm |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.0005 Lux; 0 Lux with white light |
| Aperture | F1.0 |
| White LED | Quantity: 4 |
| 50Hz | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| Note | If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Protocol |
|
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Cloud | Yes |
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Linkage Method | N/A |
| Output Notification | Message Push |
| People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier § . |
| Back Cover | Plastic |
| ระยะเวลารับประกัน | 3 ปี |
