SKU VIGI C440(4MM)
พร้อมส่งจัดส่งภายใน 3-5 วันทำการก่อน VAT
รวม VAT 7% ฿1,444.50
แบบ: มาตรฐาน
ยังไม่มีรายละเอียดสินค้าเพิ่มเติม
| Image Sensor | 1/3” Progressive Scan CMOS |
|---|---|
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm/4 mm |
| Aperture | 2.8 mm: F1.6 |
| 4 mm | F1.6 |
| FOV | 2.8mm: |
| Horizontal FOV | 101°, Vertical FOV: 57°, Diagonal FOV: 123° |
| Horizontal FOV | 86°, Vertical FOV: 48°, Diagonal FOV: 103° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 2.8 mm: |
| Detect | 64 m (209 ft) |
| Observe | 27 m (87 ft) |
| Recognize | 13 m (42 ft) |
| Identify | 6 m (21 ft) |
| Detect | 80 m (262 ft) |
| Observe | 33 m (109 ft) |
| Recognize | 16 m (52 ft) |
| Identify | 8 m (26 ft) |
| Range | Pan: 0° to 360°, |
| Tilt | 0° to 85° |
| Rotate | 0° to 360° |
| IR LED | Quantity: 2 |
| Range | 30m |
| Wavelength | 850nm |
| White LED | Quantity: 2 |
| Range | 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2560 X 1440 |
| Main Stream | Frame Rate |
| 50Hz | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| 2560×1440, 2304×1296, 2048×1280,1920×1080,1280×720 | |
| Note | If the image rotation is set to 90° or 270°, the frame rate only |
| supports up to 20fps. | |
| Sub-Stream | Frame Rate: |
| 50Hz | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| 640×480, 352×288, 320×240 | |
| Note | If the image rotation is set to 90° or 270°, the frame rate only |
| supports up to 20fps. | |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream | H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps |
| Sub-Stream | 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Protocol | • TCP/IP |
| • UDP | |
| • ICMP | |
| • HTTP | |
| • HTTPS | |
| • DHCP, DNS, RTSP | |
| • NTP | |
| • UPnP UDP | |
| • SSL/TLS | |
| • FTP/SFTP | |
| • RTP | |
| • IPv4 | |
| • IPv6 | |
| • ARP | |
| • SNMP | |
| • IEEE 802.1x | |
| ONVIF | Yes |
| API | Open Network Video Interface (Profile S) |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| Web Browser | Google Chrome® 57 and above |
| Firefox® 52 and above | |
| Safari® 11 and above | |
| Microsoft® Edge 91 and above | |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |

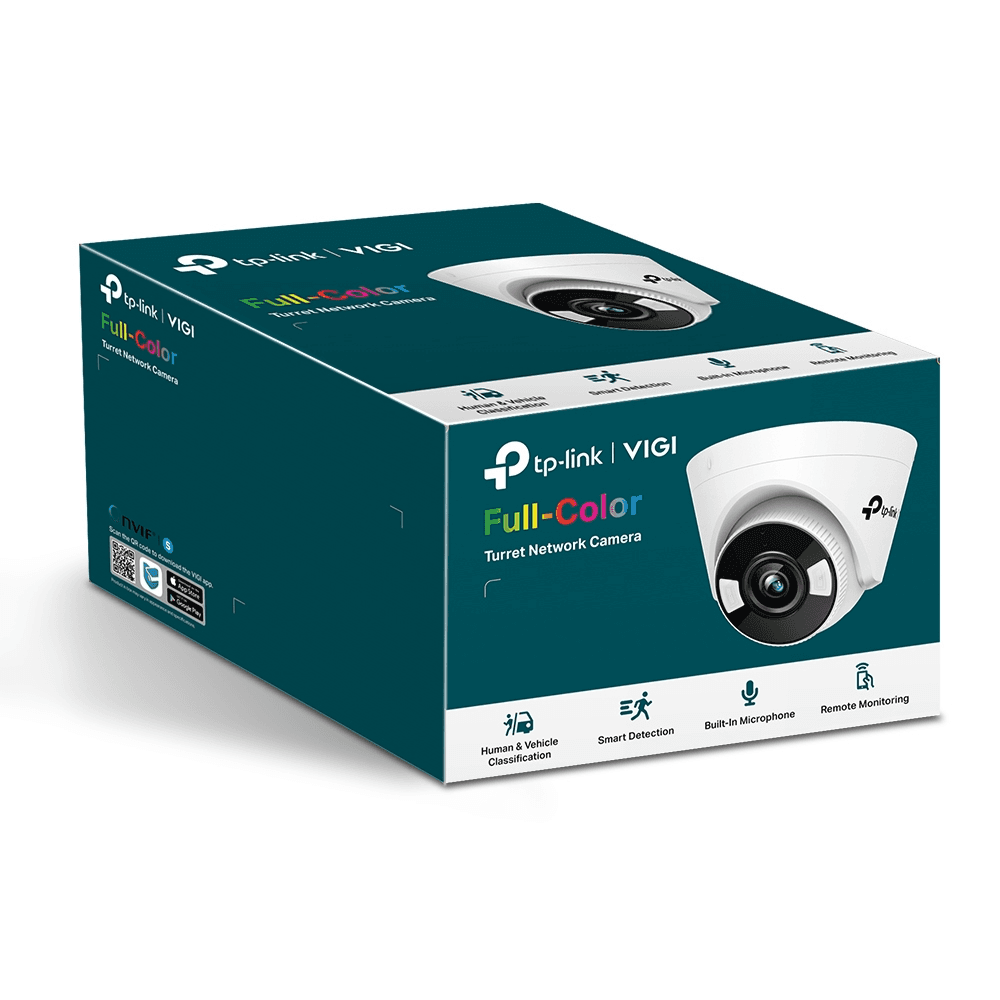

| Package Content | VIGI Network Camera |
| Quick Start Guide | |
| Mounting Accessories | |
| Material | Plastic |
| Net Weight | 0.24 Kg |
| Gross Weight | 0.4 Kg |
| Power Supply | 12V DC ± 5%, Max. 7 W, 5.5mm Coaxial Power Plug |
| PoE | 802.3af/at, class 0, Max. 8 W |
| Product Dimensions (L x W x H) | Φ123×84 mm |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC |
| รหัสสินค้า (SKU) | VIGI C440(4MM) |
| หมวดหมู่ | กล้อง IP |
| ประเภทการจัดส่ง | จัดส่งสินค้าจริง |
