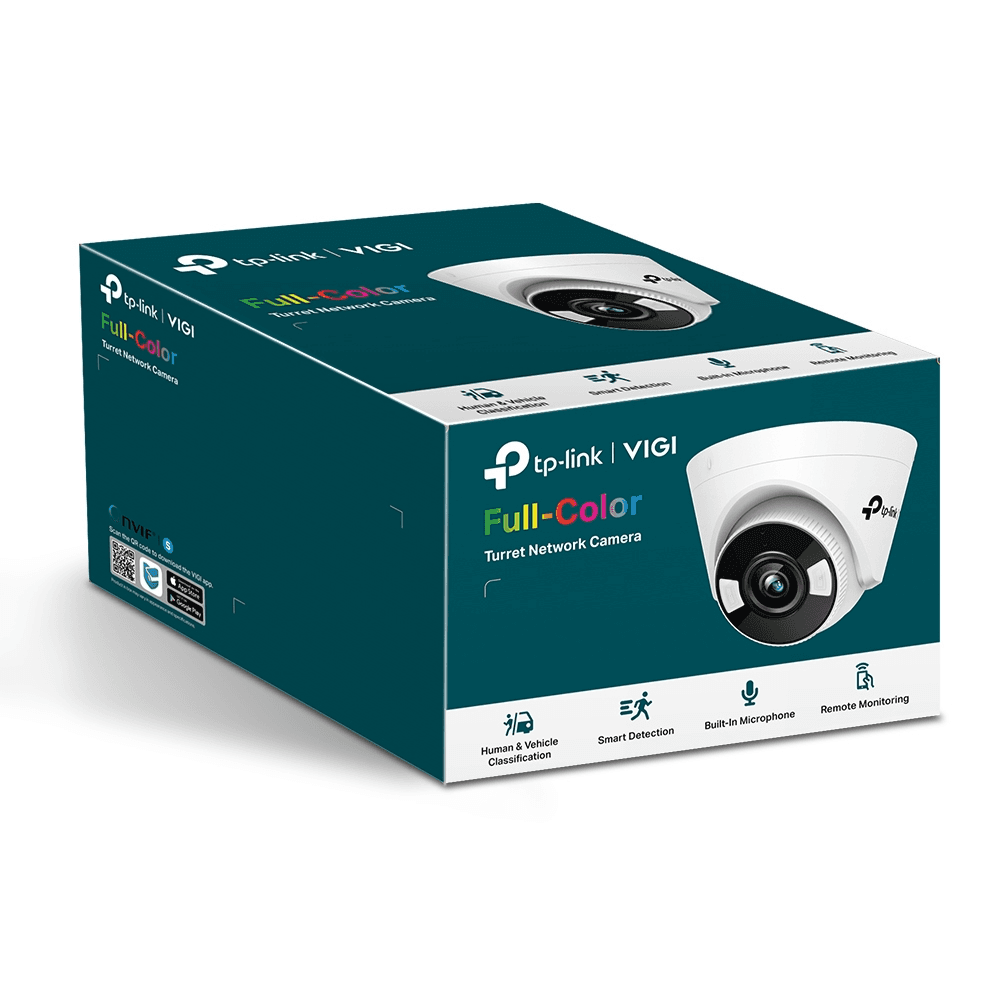

Name: TP-LINK VIGI C450(4mm) 5MP Full-Color Turret Network Camera
Brand: TP-Link

รายละเอียดสินค้า

รุ่น / SKU	VIGI C450(4MM)
Type	Fixed Focal Lens
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Audio Input	Yes
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Storage Temperature	-40–60 °C
Storage Humidity	95% or Less (Non-Condensing)
Range	Pan: 0° to 360°, Tilt: 0° to 85°
Range	30m
Wide Dynamic Range	120 dB
Client	VIGI App, VIGI Security Manager, Web UI
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Audio Communication	Two-Way Audio
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Audio Bit Rate	64 Kbps(G.711 alaw)
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
Power	DC Power Port
Power Supply	12V DC ± 5%, Max. 9 W, 5.5mm Coaxial Power Plug
PoE	802.3af/at, class 0, Max. 10.5 W
Image Sensor	V1:1/2.7” Progressive Scan CMOSV1.20:1/2.65” Progressive Scan CMOS (ข้อมูลเปรียบเทียบ ไม่รับรองเวอร์ชันจัดส่ง)
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Focal Length	2.8/4 mm
FOV	V1.0:• 2.8mm: Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°• 4mm: Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°V1.20:• 2.8mm: Horizontal FOV:108.3°, Vertical FOV: 59.9°, Diagonal FOV:126.8°• 4mm: Horizontal FOV:88.4°, Vertical FOV: 46°, Diagonal FOV:105.9° (ข้อมูลเปรียบเทียบตามฮาร์ดแวร์และเลนส์ ไม่รับรองเวอร์ชันจัดส่ง)
Lens Mount	M12*P 0.5
DORI Distance	2.8 mm
Detect	64 m (209 ft)
Observe	27 m (87 ft)
Recognize	13 m (42 ft)
Identify	6 m (21 ft) 4 mm
Detect	80 m (262 ft)
Observe	33 m (109 ft)
Recognize	16 m (52 ft)
Identify	8 m (26 ft)
IR LED	Quantity: 2
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
Max. Resolution	2880 X 1620
Main Stream	Frame Rate：
Resolution	2880×1620,2688×1520, 2304×1296, 2048×1280, 1920×1080,1280×720
Sub-Stream	Frame Rate：
Resolution	704×576,640×480, 352×288, 320×240
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream	H.265/H.264
Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps
Sub-Stream	64 Kbps to 512 Kbps
Multi-Target-Type Detection	Supports Simultaneous Detection and Capture of Human Body and Vehicle
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Alarm	N/A
Reset Button	Yes
Protection	N/A
Environment Noise Filtering	Yes
Operating Temperature	-30–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Package Content	VIGI Network Camera Quick Start Guide Mounting Accessories
Material	Plastic
Net Weight	0.24 Kg
Gross Weight	0.4 Kg
Product Dimensions (L x W x H)	123x 84x 123 mm
Certifications	CE, NTRA, VCCI, KC, BSMI, FCC, IC
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/white light
Aperture	2.8 mm: F1.6
4 mm	F1.6
Wavelength	850nm
White LED	Quantity: 2
50Hz	1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz	1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Note	If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile△
H.265+	Main Stream Supported△
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
Protocol	• TCP/IP UDP ICMP HTTP HTTPS DHCP, DNS, RTSP NTP UPnP UDP SSL/TLS SNMP IEEE 802.1x
ONVIF	Yes
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Cloud	Yes
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Linkage Method	N/A
Output Notification	Message Push
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Face Capture	N/A
Face Comparison	N/A
ระยะเวลารับประกัน	3 ปี
