SKU VIGI C540-4G(4MM)
พร้อมส่งจัดส่งภายใน 3-5 วันทำการก่อน VAT
รวม VAT 7% ฿2,985.30
แบบ: มาตรฐาน
ยังไม่มีรายละเอียดสินค้าเพิ่มเติม
| Image Sensor | 1/3.06” Progressive Scan CMOS |
|---|---|
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/ Scheduled/ Auto |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94° |
| Lens Mount | M12*0.5 |
| DORI Distance | Detect: 80 m (262 ft) |
| Observe | 33 m (109 ft) |
| Recognize | 16 m (52 ft) |
| Identify | 8 m (26 ft) |
| Pan/tilt Range | Pan: 0° to 348°, Tilt: 0° to 120° |
| Pan/tilt Speed | • Pan Speed: |
| Configurable from 8° to 44°/s; Preset Speed | 44°/s |
| Configurable from 8° to 44°/s, Preset Speed 44°/s | |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes; |
| Auto restore to previous PTZ and lens status after power failure | |
| Park Action | Yes; |
| Preset; Patrol Scan | |
| 3D Positioning | Yes |
| Range | • Pan: 0° to 348° |
| • Tilt | 0° to 120° |
| IR LED | • Quantity: 2 |
| • Range | 30m |
| • Wavelength | 850nm |
| White LED | • Quantity: 2 |
| • Range | 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
| Max. Resolution | 2560 X 1440 |
| Main Stream | • Frame Rate: |
| 50Hz | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 | |
| Note | If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | • Frame Rate: |
| 50Hz | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps |
| 60Hz | 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps |
| 640×480, 352×288, 320×240 | |
| Note | If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 |
| • Sub-Stream | H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | • Main Stream: 256 Kbps to 3 Mbps |
| • Sub-Stream | 64 Kbps to 512 Kbps |
| Image Settings | • Mirror |
| • Brightness | |
| • Contrast | |
| • Saturation | |
| • Sharpness | |
| • Exposure, WDR, | |
| • White Balance | |
| • Prevent Overexposure to Infrared Light | |
| • HLC Adjustable by Client Software | |
| • Rotation (90°/270°) | |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| Protocol | • TCP/IP |
| • UDP | |
| • ICMP | |
| • HTTP | |
| • HTTPS | |
| • DHCP | |
| • DNS | |
| • RTSP | |
| • NTP | |
| • UPnP UDP | |
| • SSL/TLS | |
| • FTP/SFTP | |
| • RTP | |
| • IPv4 | |
| • ARP | |
| • SMTP | |
| • SNMP | |
| • IEEE 802.1x | |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 2 Main Streams & 2 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | • Google Chrome® 57 and above |
| • Firefox® 52 and above | |
| • Safari® 11 and above | |
| • Microsoft® Edge 91 and above | |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Standard | LTE-TDD/LTE-FDD/WCDMA |
| SIM Type | Nano SIM |
| Category | 4 |
| Frequency | • LTE-FDD: B 1/3/7/8/20/28 |
| • LTE-TDD | B 38/40 |
| • WCDMA | B 1/8 |
| Smart Event | • Human & Vehicle Classification |
| • Intrusion Detection | |
| • Line-Crossing Detection | |
| • Region Entering Detection | |
| • Region Exiting Detection | |
| • Object Abandoned Detection | |
| • Object Removal Detection | |
| • People Detection | |
| • Vehicle Detection | |
| Basic Event | • Motion Detection |
| • Video Tampering Detection | |
| • Exception (Illegal Login) | |
| Alarm Linkage | • Memory Card Video Recording |
| • Message Push | |
| • Audible Warning | |
| • White Light Flashing | |
| Linkage Method | N/A |
| Output Notification | Message Push |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |

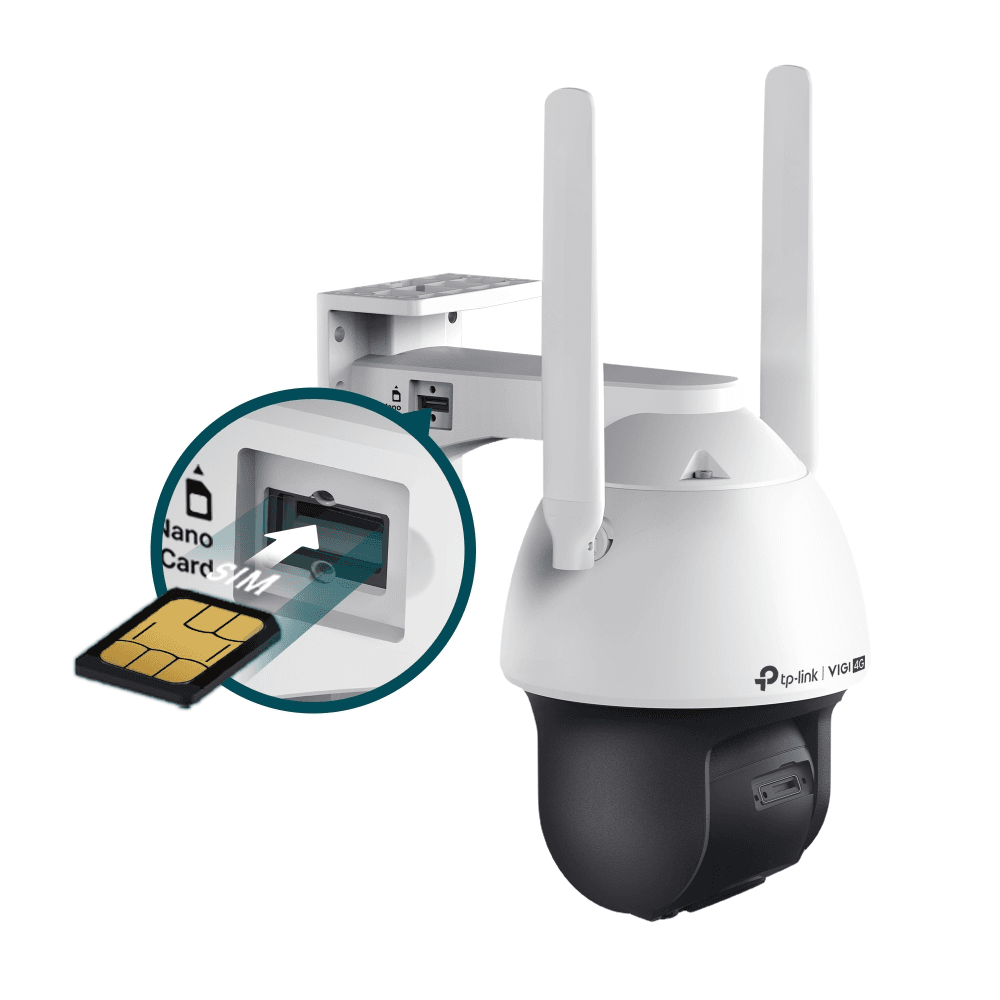

| Built-in Nano-SIM Card Slot | Yes |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker | Yes |
| Audio | N/A |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Package Content | • VIGI Network Camera |
| • Quick Start Guide | |
| • Waterproof Cable Attachments | |
| • Mounting Accessories | |
| • Power Adapter | |
| Material | Plastic |
| Net Weight | 0.69 Kg |
| Gross Weight | 1.16 Kg |
| Power Supply | 12V DC/1A, 5.5mm Coaxial Power Plug |
| Antenna | • Quantity: 2 |
| 690~960&1710~2690MHz Dipole Omni-Directional Antenna | |
| Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz | |
| Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz | |
| Protection | IP66 |
| Product Dimensions (L x W x H) | 120 × 182 × 201 mm (excluding antennas) |
| Certifications | CE, RCM, BSMI, RoHS, NCC |
| รหัสสินค้า (SKU) | VIGI C540-4G(4MM) |
| หมวดหมู่ | กล้อง IP |
| ประเภทการจัดส่ง | จัดส่งสินค้าจริง |
