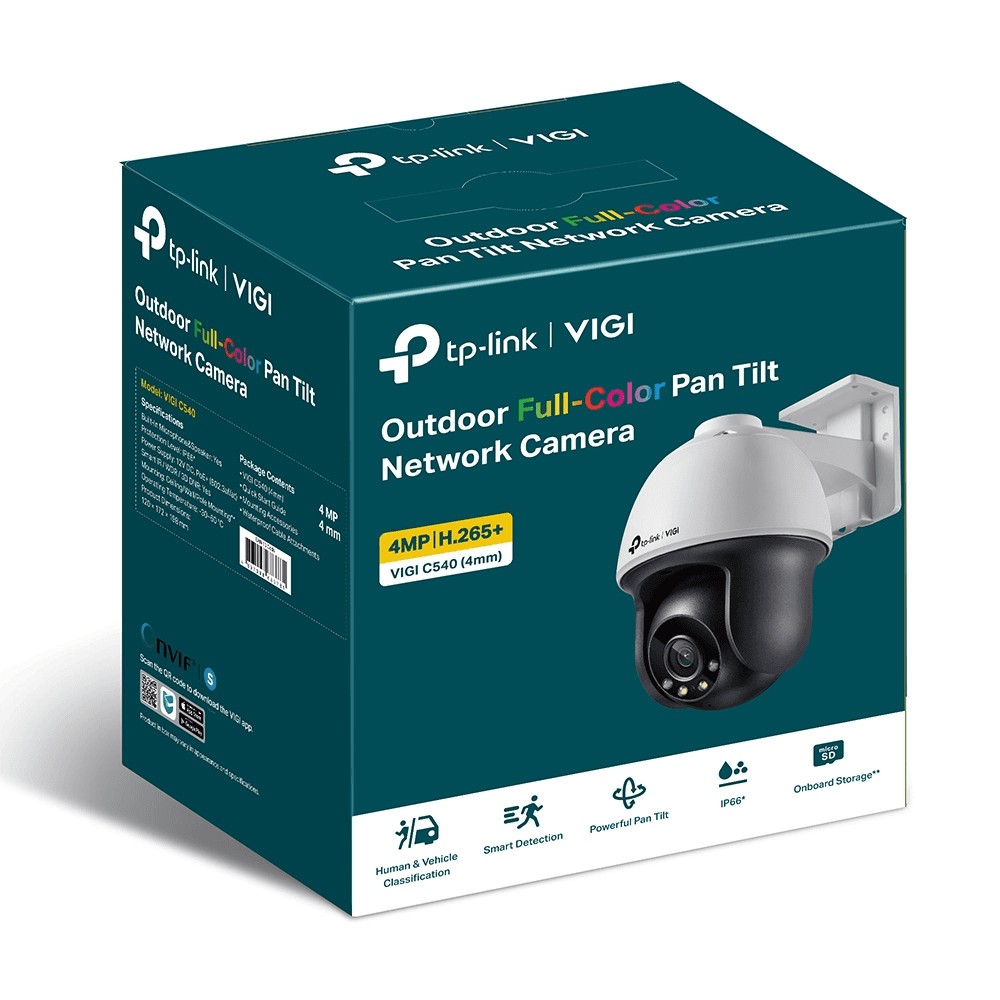

Name: TP-LINK VIGI C540(4mm) 4MP Outdoor Full-Color Pan Tilt Network Camera
Brand: TP-Link

รายละเอียดสินค้า

รุ่น / SKU	VIGI C540(4MM)
Type	Fixed Focal Lens
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Power-off Memory	Yes
Audio Input	Yes
Network Storage	NAS (NFS, SMB/ CIFS)
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB
Storage Temperature	-40–60 °C
Storage Humidity	95% or Less (Non-Condensing)
Pan/tilt Range	Pan: 0° to 350°, Tilt: 0° to 120°
Range	Pan: 0° to 348°
Range	30m
Wide Dynamic Range	DWDR
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Audio Communication	Two-Way Audio
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Audio Bit Rate	64 Kbps(G.711 alaw)
Audio Output	N/A
Built-in Microphone	Yes
Built-in Speaker	Yes
Audio	N/A
Power	DC Power Port
Max. Power Consumption	12V DC: Max 14W
PoE	Class 4
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 4)
Image Sensor	1/3” Progressive Scan CMOS
Lens	Fixed focal lens (4 mm)
Lens Mount	M12
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Focal Length	4 mm
FOV	4mm:
Horizontal FOV	79°, Vertical FOV: 43°, Diagonal FOV: 93°
DORI Distance	4 mm:
Detect	80 m (262 ft)
Observe	33 m (109 ft)
Recognize	16 m (52 ft)
Identify	8 m (26 ft)
IR LED	Quantity: 2
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
Max. Resolution	2560 X 1440
Main Stream	Frame Rate:
Resolution	2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
Sub-Stream	Frame Rate:
Resolution	640×480, 352×288, 320×240
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream	H.265/H.264
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps
Sub-Stream	64 Kbps to 512 Kbps
Video Compression	Main stream: H.265+/H.265/H.264+//H.264
Frame Rate & Resolutions	Main Stream
Resolution	2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 Sub-Stream
Video Streaming	Main Stream Sub-Stream
Day/Night Switch	Day/Night/Auto/Schedule-Switch
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Alarm	N/A
Reset Button	Yes
Button	Reset Button
General Features	Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Protection	IP66
Environment Noise Filtering	Yes
Operating Temperature	-30–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Package Content	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Dimensions( H X W X D )	120 × 172 × 198 mm
Material	Plastic
Product Dimensions (L x W x H)	120 × 172 × 198 mm
Certifications	CE, RCM, BSMI, VCCI, RoHS, NTRA, KC
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Aperture	4 mm: F1.6
Minimum Illumination	Color: 0.005 Lux; 0 Lux with IR/white light
Digital Noise Reduction	3D DNR
WDR	DWDR
Weatherproof Rating	IP66
Viewing Angle	(4mm) Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°
Aperture	F1.6
Pan/tilt Speed	Pan Speed:
Configurable from 1° to 55°/s; Preset Speed	55°/s
Tilt Speed	Configurable from 1° to 40°/s, Preset Speed 40°/s
Manual Control Speed	Configurable from 8° to 35°/s
Presets	300
Patrol Scan	8 patrols, up to 8 presets for each patrol
Park Action	Yes
3D Positioning	Preset, Patrol Scan
Tilt	0° to 120°
Wavelength	850nm
White LED	Quantity: 2
50Hz	1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz	1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Note	If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement	BLC/3D DNR/HLC/SmartIR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
Protocol	• TCP/IP UDP ICMP HTTP HTTPS DHCP DNS RTSP NTP UPnP UDP SSL/TLS FTP/SFTP RTP IPv4 IPv6 ARP SNMP IEEE 802.1x
ONVIF	Yes
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Cloud	Yes
Smart Event	• Area Intrusion Detection Line-Crossing Detection People Detection Vehicle Detection Region Entering Detection Region Exiting Detection Object Abandoned Detection Object Removal Detection Abnormal Sound Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) Video Tampering Detection Exception ( Illegal Login)
Linkage Method	N/A
Output Notification	Message Push
Frame Rate	1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation (90°/270°)
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Region of Interest	1 Region
ระยะเวลารับประกัน	3 ปี
