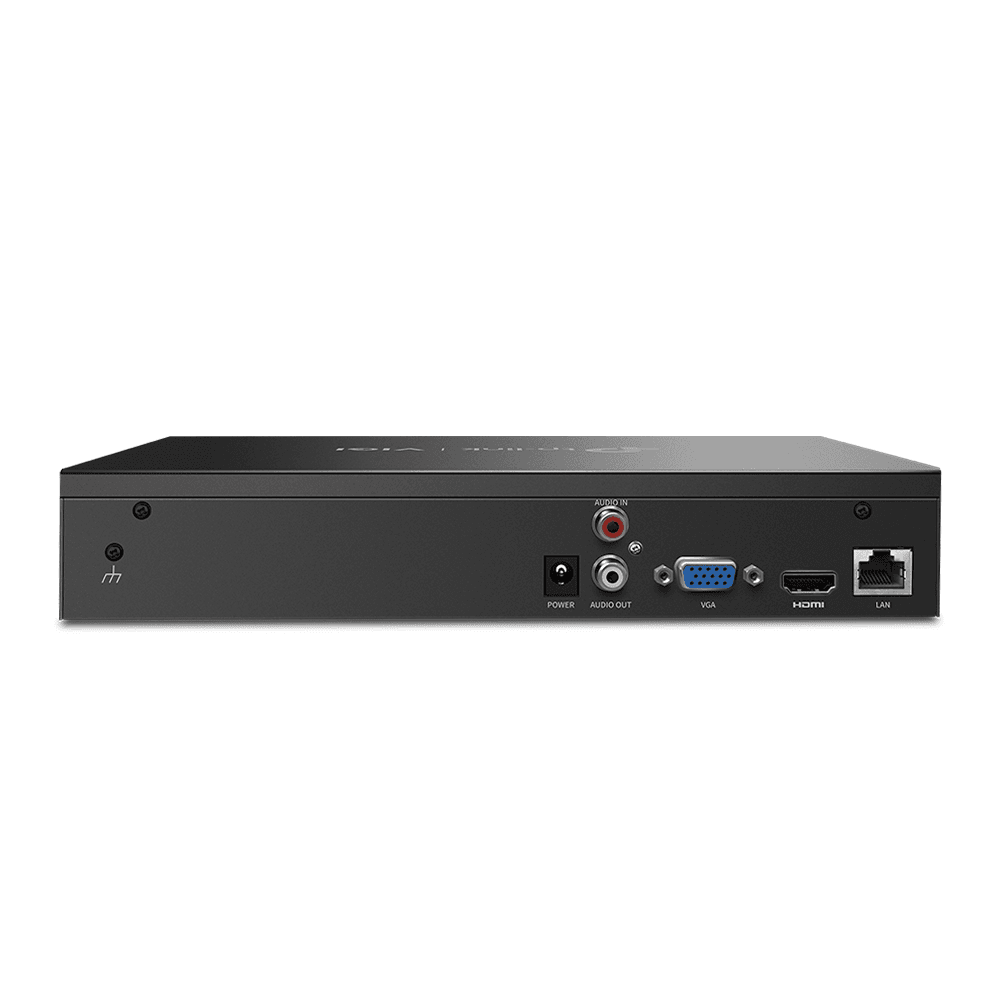

Name: TP-LINK VIGI NVR1016H 16 Channel Network Video Recorder
Brand: TP-Link

รายละเอียดสินค้า

รุ่น / SKU	VIGI NVR1016H
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF, CGI
IP Video Input	16-Channel
Capacity	Up to 16 TB Capacity for Each HDD
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Video Input	16-Channel IP Video Input, up to 8 MP Resolution
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	60 Mbps
Incoming Bandwith	80 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Network Interface	1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface	2× USB 2.0
Audio Interface	1, Audio In; 1, Audio Out
Serial Interface	N/A
HDMI	1
Network Interface	1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
HDMI Output Resolution	1 Channel, Resolution: 3840×2160/30Hz,1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Audio Compression	G.711A/G.711U/G.726
Speaker	N/A
Power	1× DC Jack
Power Adapter	0–40 °C
External Power Supply	DC 12V/1.5A
Max. Power Consumption	4.25 W (without disk)
VGA Output Resolution	1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Multi-View Display	1/4/6/8/9/16
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Live View/Playback Resolution	8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
VGA	1
Recording Resolution	8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
VGA Output Resolution	1 Channel, Resolution: 1920×1080/60Hz,1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Alarm In/Out	N/A
Reset Button	1
General Alarm	• Motion Detection Video Tampering Line-Crossing Detection Intrusion Detection Region Entering Detection Region Exiting Detection Object Abandoned/Removal Detection Vehicle Detection Human Detection Smart Frame
Anomaly Alarm	• Video Loss Offline and IP Conflict Disk Exception Login Exception
Alarm Linkage	• Recording White Light Alarm Buzzer Log Audible Alarm
Operating Temperature	-10–55 °C
Weight	578.5 g
Package Content	VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide
Working Temperature	• NVR: -10–55 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	246.2 × 148.2 × 45 mm
Net Weight	0.61 Kg
Gross Weight	1.12 Kg
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, IC, HDMI, FCC
Video Output Mode	HDMI/VGA Simultaneous Output
Decoding Format	H.265+/H.265/ H.264+/H.264
Synchronous Playback	16-Channel
Capability	2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
Record Mode	• Manual Recording Scheduling Recording Motion Detection Recording
Playback Mode	• Instant Playback Regular Playback Tag Playback Event Playback
Backup Mode	• Regular Backup Video Clip Backup
Playback Function	• Play Pause Stop Fast Forward Fast Backward Play By Frame Full Screen Video Clip Export Clip Digital Zoom Lock Recording Audio On/Off
Protocol	TCP/IP, DHCP, DNS, NTP, UPnP
Mobile Phone Access	Android, iOS
eSATA	N/A
SATA	1 SATA Interface
ระยะเวลารับประกัน	3 ปี
