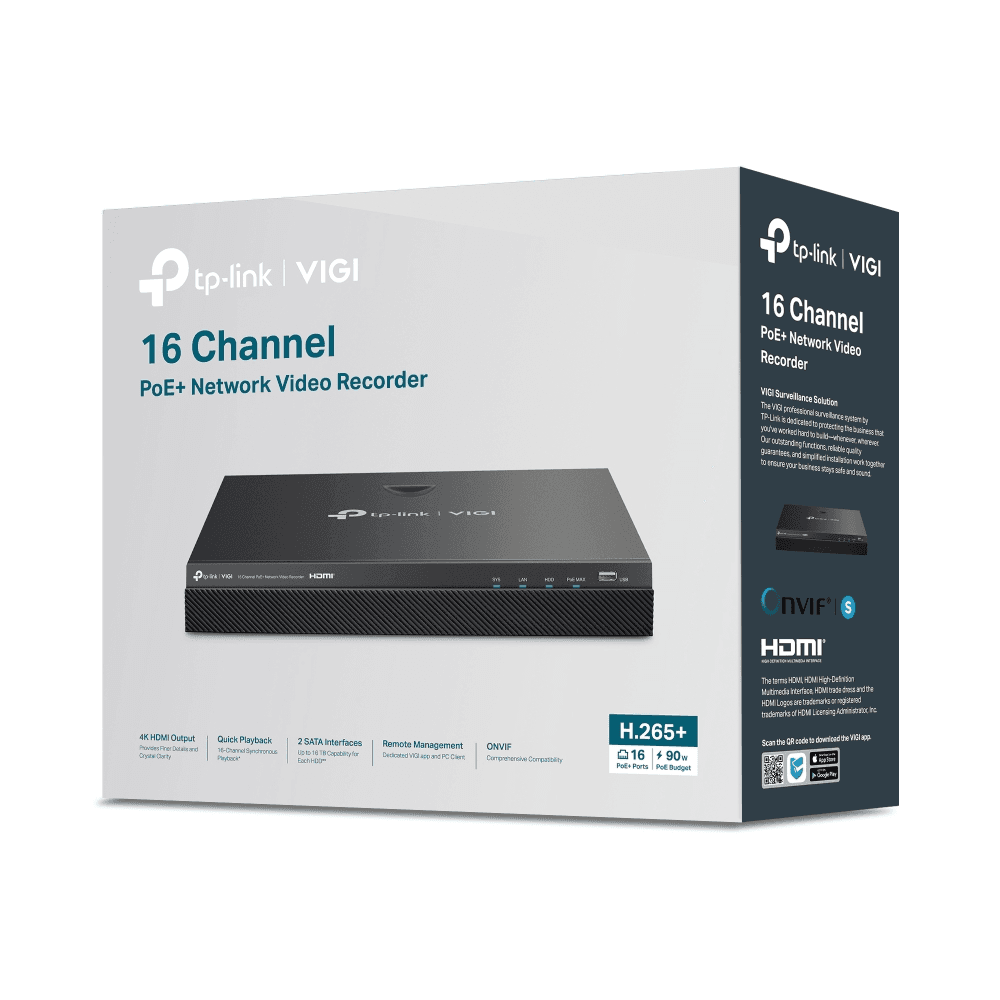

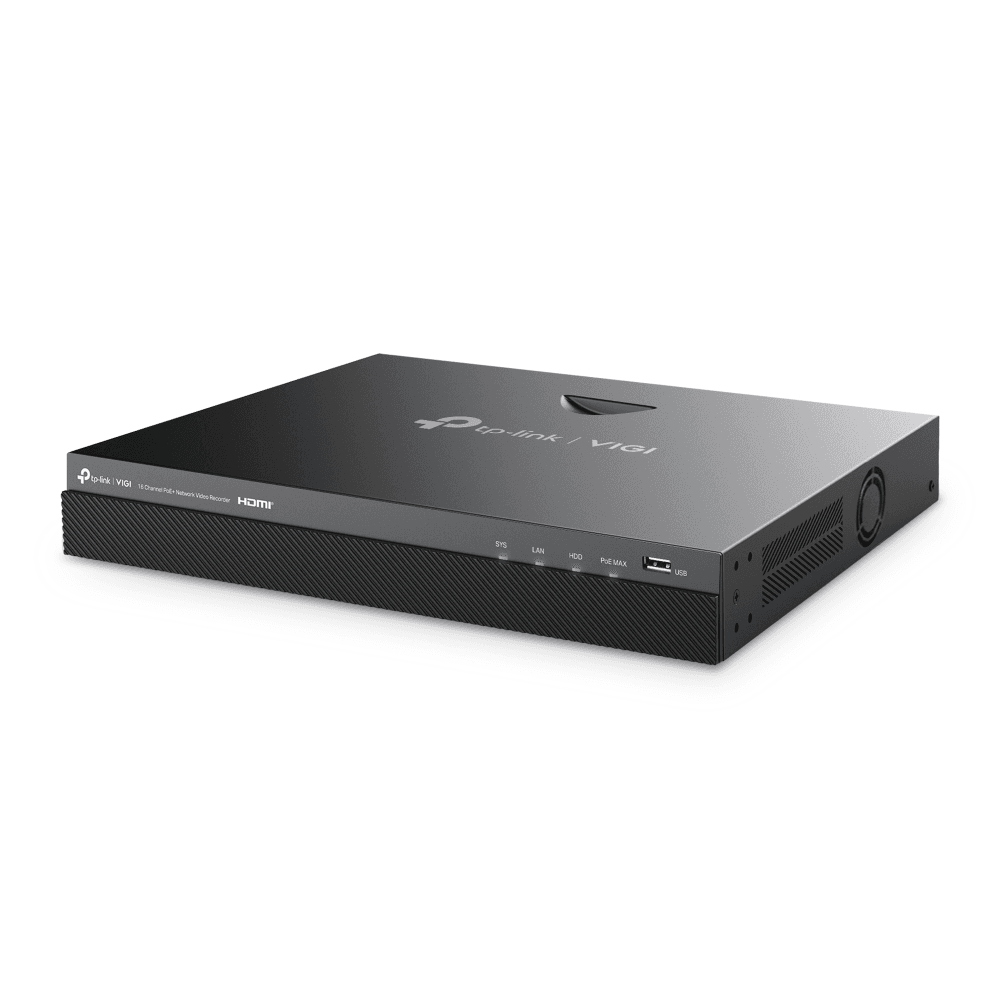

Name: TP-LINK VIGI NVR2016H-16P 16CH POE+ NETWORK VIDEO RECORDER 90W
Brand: TP-Link

รายละเอียดสินค้า

รุ่น / SKU	VIGI NVR2016H-16P
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF Profile S, CGI
IP Video Input	16-Channel
Capacity	Up to 16 TB Capacity for Each HDD*
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Incoming Bandwidth	160 Mbps
Outgoing Bandwidth	160 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz

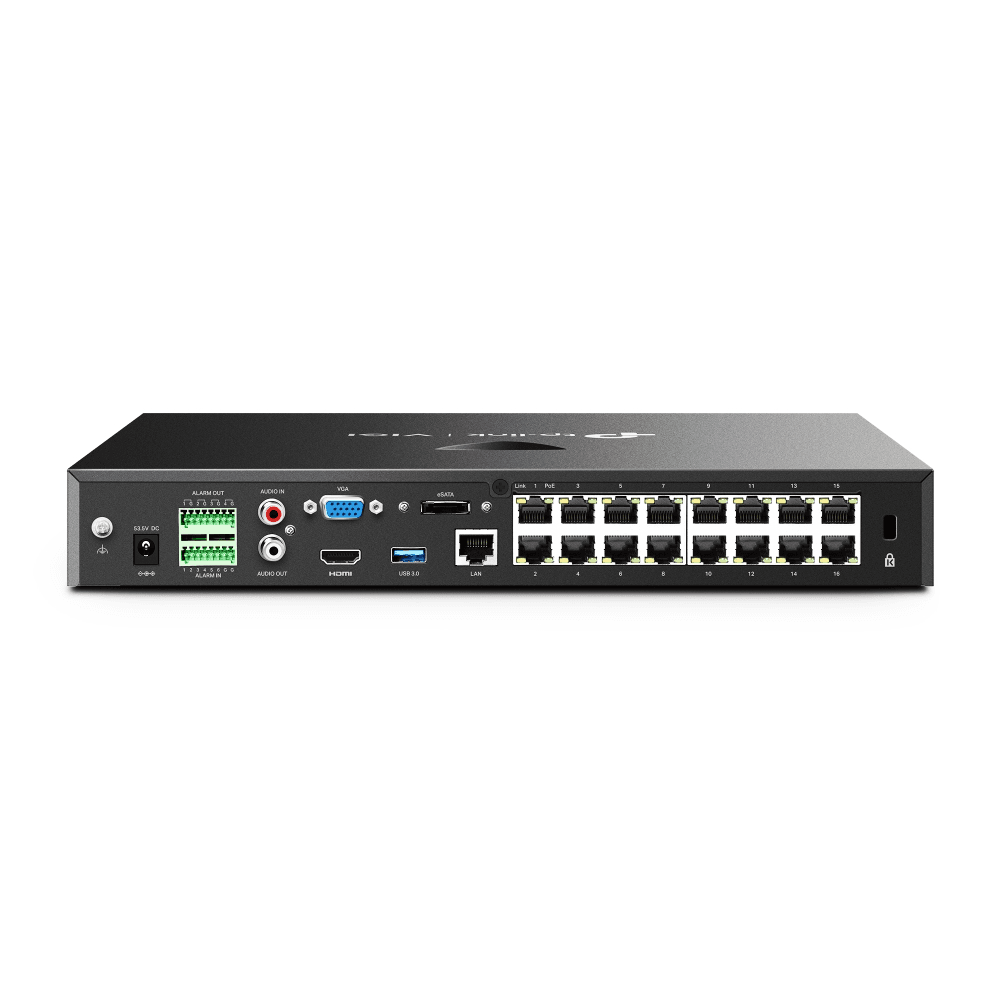

Network Interface	1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface	1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface	1-ch RCA Input; 1-ch RCA Output
Serial Interface	N/A
HDMI	1
Interface	1- 16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
Audio Compression	G.711A/G.711U/G.726
Speaker	N/A
Power	1× DC Jack
PoE Budget	90 △ W Available for All PoE+ Ports, 30 W Max per Port
Power Adapter	0–40 °C
Power Supply	53.5V DC/2.43A
Max. Power Consumption	6.2 W (Without Disk) 40 W (With Disk)
VGA Output Resolution	1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Multi-View Display	1/4/6/8/9/16
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
VGA	1
Alarm In/Out	6/4
Reset Button	1
General Alarm	• Motion Detection Video Tampering Scene Change Detection Line-Crossing Detection Intrusion Detection Region Entering Detection Region Exiting Detection Loitering Detection Object Abandoned/Removal Detection Vehicle Detection Human Detection Abnormal Sound Detection Smart Frame
Anomaly Alarm	• Video Loss Offline and IP Conflict Disk Exception Login Exception Fan Exception
Alarm Linkage	• Recording White Light Alarm Buzzer Log Audible Alarm
Package Content	• VIGI Network Video Recorder Power Adapter Power Cable HDD Power Cables HDD Data Cables Mounting Accessories Mouse Quick Installation Guide
Working Temperature	NVR: -10–55 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	13.0 × 11.2 × 1.8 in (330 × 285 × 45 mm)
Net Weight	2.2 Kg §
Gross Weight	4.2 Kg §
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Video Output Mode	HDMI/VGA Simultaneous Output
Synchronous Playback	16-Channel †
Capability	• 25fps: 10-ch @ 1080P
30fps	2-ch@8MP, 4-ch@5MP, 5-ch@4MP, 6-ch@3MP
Record Mode	Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode	Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode	Regular Backup, Video Clip Backup
Playback Function	Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
Protocol	UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access	Android, iOS
eSATA	1
SATA	2 SATA Interfaces
Standard	802.3at/af Compliant
Note	The alarm function requires the use of a camera.
ระยะเวลารับประกัน	3 ปี
