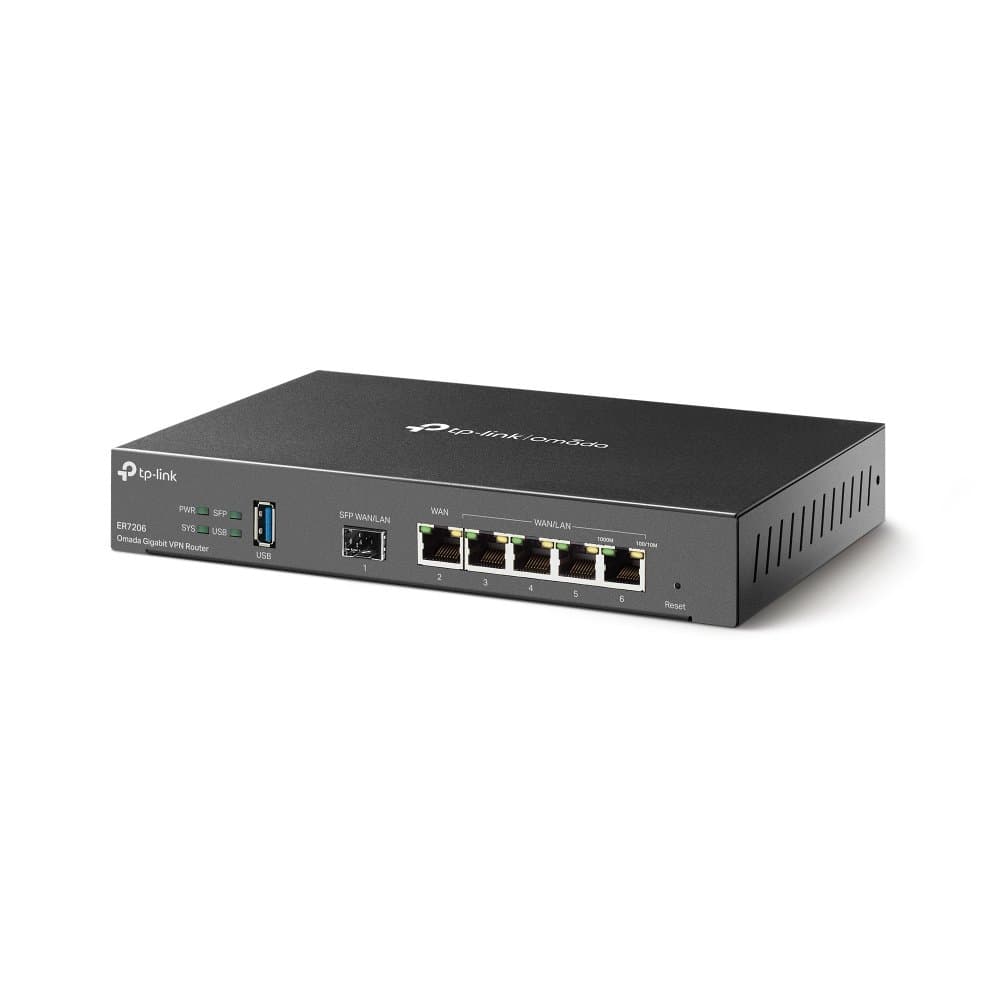

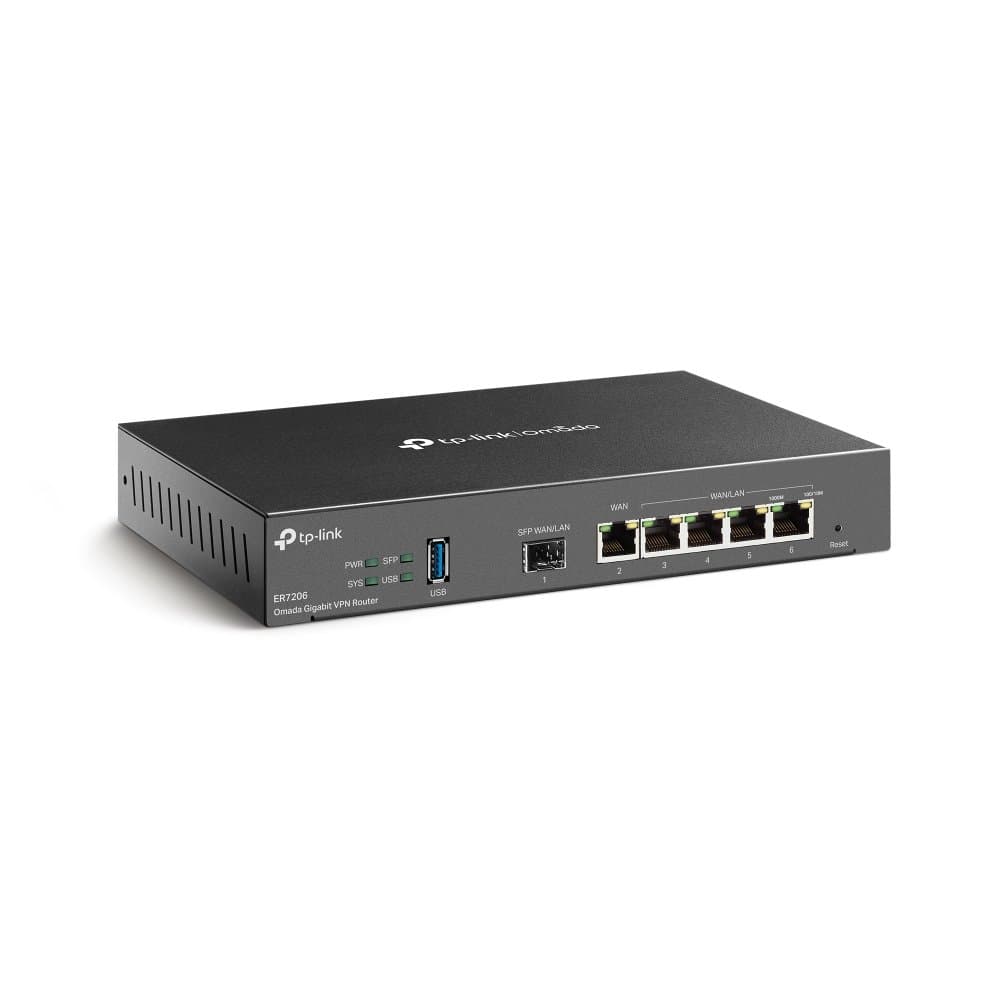

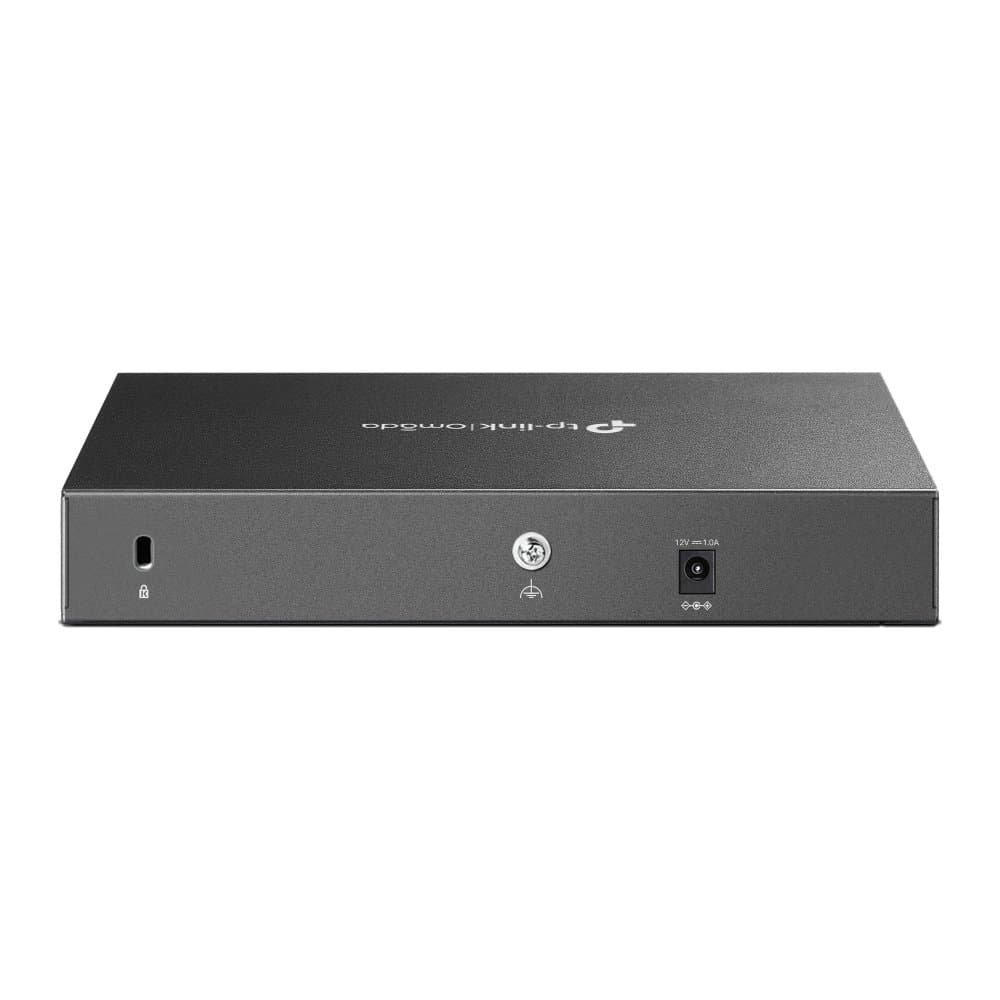

SKU TPL-ER7206
พร้อมส่งจัดส่งภายใน 3-5 วันทำการก่อน VAT
รวม VAT 7% ฿5,232.30
แบบ: มาตรฐาน
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q |
|---|---|
| • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP | |
| Interface | • 1 Gigabit SFP WAN/LAN Port |
| • 1 Gigabit WAN Port | |
| • 4 Gigabit LAN/WAN Ports | |
| • 1 USB 3.0 Port (supports USB LTE dongle and USB storage) | |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) |
| • 100BASE-TX | UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) |
| • 1000BASE-T | UTP category 5, 5e, 6 cable (Max 100 m) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 12V DC/ 1A Power Adapter |
| PoE Budget | – |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop/ Wall-Mounting |
| Max Power Consumption | • 7.5 W (with USB 3.0 connected) |
| • 4.5 W (without USB 3.0 connected) | |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,300 |
| NAT (Static IP) | 945.3 Mbps / 940.5 Mbps |
| NAT(DHCP) | 939.6 Mbps / 940.9 Mbps |
| NAT(PPPoE) | 943.6 Mbps / 940.9 Mbps |
| NAT (L2TP) | 880.1 Mbps / 859.0 Mbps |
| NAT (PPTP) | 855.0 Mbps / 907.2 Mbps |
| 64 Byte Packet Forwarding Rate | – |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 617.1 Mbps |
| • ESP-SHA256-AES256 | 592.8 Mbps |
| • ESP-SHA384-AES256 | 592.4 Mbps |
| • ESP-SHA512-AES256 | 604.5 Mbps |
| OpenVPN | 139.1 Mbps |
| L2TP VPN Throughput | • Unencrypted: 977.4 Mbps |
| • Encrypted | 334.6 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1064.1 Mbps |
| • Encrypted | 206.8 Mbps |
| SSL VPN Throughput | 131.6 Mbps |
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,279 pps / 81,275 pps |
| WAN Connection Type | • Static IP |
| • Dynamic IP | |
| • PPPoE(supports MRU Configuration) | |
| • PPTP | |
| • L2TP | |
| MAC Clone | Modify WAN/LAN MAC Address † |
| DHCP | • DHCP Server |
| • DHCPv6 PD Server (only in Standalone Mode) | |
| • DHCP Options Customization | |
| • DHCP Address Reservation | |
| • Multi-IP Interfaces | |
| • Multi-Net DHCP | |
| IPv6 | StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing |
| • Policy Routing | |
| • RIP § | |
| • OSPF § | |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance |
| • Application Optimized Routing | |
| • Link Backup (Timing, Failover) | |
| • Online Detection | |
| NAT | • One-to-One NAT |
| • Multi-Net NAT | |
| • Virtual Server | |
| • Port Triggering § | |
| • NAT-DMZ | |
| • FTP/H.323/SIP/IPSec/PPTP ALG | |
| • UPnP | |
| Session Limit | IP-based Session Limit |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels |
| • LAN-to-LAN, Client-to-LAN | |
| • Main, Aggressive Negotiation Mode | |
| • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm | |
| • IPsec Failover | |
| • IKE v1/v2 | |
| • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm | |
| • NAT Traversal (NAT-T) | |
| • Dead Peer Detection (DPD) | |
| • Perfect Forward Secrecy (PFS) | |
| PPTP VPN | • PPTP VPN Server |
| • PPTP VPN Client (10) ‡ | |
| • 50 Tunnels | |
| • PPTP with MPPE Encryption | |
| L2TP VPN | • L2TP VPN Server |
| • L2TP VPN Client (10) ‡ | |
| • 50 Tunnels | |
| • L2TP over IPSec | |
| OpenVPN | • OpenVPN Server |
| • OpenVPN Client (5) ‡ | |
| • 55 OpenVPN Tunnels | |
| • “Certificate + Account” Mode | |
| • Full Mode | |
| Filtering | • WEB Group Filtering § |
| • URL Filtering | |
| • Web Security § | |
| ARP Inspection | • Sending GARP Packets § |
| • ARP Scanning § | |
| • IP-MAC Binding | |
| Attack Defense | • TCP/UDP/ICMP Flood Defense |
| • Block TCP Scan (Stealth FIN/Xmas/Null) | |
| • Block Ping from WAN | |
| Access Control | Source/Destination IP Based Access Control |
| Web Authentication | • No Authentication |
| • Simple Password* | |
| • Hotspot(Local User /Voucher * / SMS * /Radius * ) | |
| • External Radius Sever | |
| • External Portal Sever * | |
| • LDAP § | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) | |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface |
| • Remote Management | |
| • Export & Import Configuration | |
| • SNMP v1/v2c/v3 | |
| • Diagnostics (Ping & Traceroute) § | |
| • NTP Synchronize § | |
| • Port Mirroring | |
| • CLI (only in Standalone Mode) | |
| • Syslog Support | |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery |
| • Intelligent Network Monitoring | |
| • Abnormal Event Warnings | |
| • Unified Configuration | |
| • Reboot Schedule | |
| • Captive Portal Configuration | |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER7206(TL-ER7206) |
| • Power Cord | |
| • Quick Installation Guide | |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) |
| • Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| • Operating Humidity | 10% to 90% non-condensing |
| • Storage Humidity | 5% to 90% non-condensing |
| รหัสสินค้า (SKU) | TPL-ER7206 |
| หมวดหมู่ | เราเตอร์ |
| ประเภทการจัดส่ง | จัดส่งสินค้าจริง |
